Fill-Rite Pedestal Assembly - FMS

Special Price $3,115.00 Regular Price $3,476.00
SKU
FIL*NXFMPED

Standard Ground: This item usually ships within 1 business day via standard ground.

This hardware requires a PAID ONLINE ACCOUNT with Fill-Rite and a Fill-Rite NXFM100 Control Module to function.

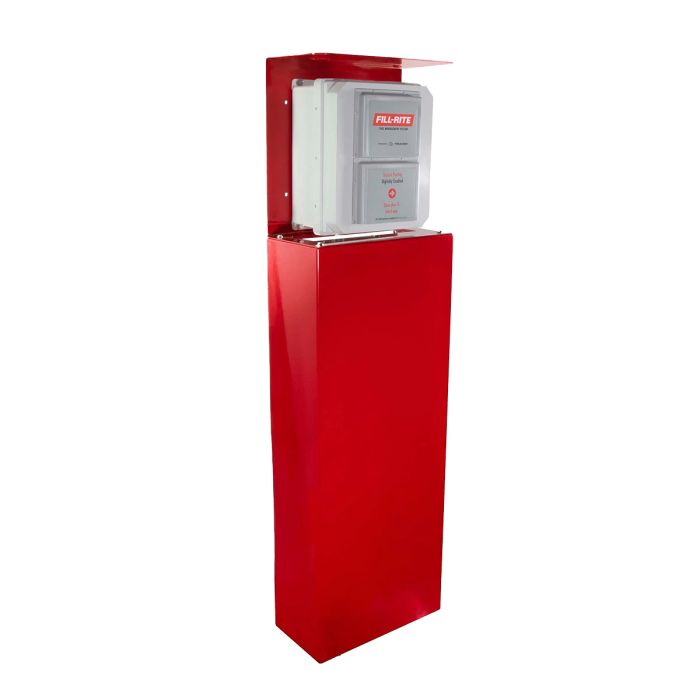

The Fill-Rite® FMS Pedestal is a rugged, all-weather enclosure that protects an iPad from the elements, theft, and abuse when utilized as part of the Fill-Rite FMS solution.

The Fill-Rite Pedestal Package Includes:

iPad with Fill-Rite FMS App installed* • All-weather enclosure with dual heater/fan for extreme weather situations that includes a 120 VAC electrical outlet installed, automatic heating/cooling controller, and padlock loop on latches • Heavy-duty, key-locked steel security iPad enclosure for technology protection • Heavy-duty steel pedestal with hardware to mount the NXFM100 and NXFM150 boxes *Only the Fill-Rite App is accessible on the pedestal iPad

Features & Benefits

Pre-loaded iPad with Fill-Rite FMS App installed and locked • Heavy-Duty steel construction • Temperature regulated, lockable enclosure suitable for all weather •  Heater turns on when the internal temperature drops to 40° F (4° C) ±7° and turns off at 60° F (15° C) ±5° • Fan turns on when the internal temperature rises to 120° F (49° C) ±5° and turns off at 90° F (32° C) ±10° • NEMA 4 fiberglass all-weather enclosure measures 12.75” x 14.75” (323.8 x 374.6mm) • 120VAC electrical outlet installed

Access

Easy iPad access installed with Fill-Rite FMS App • Key-locked steel iPad security enclosure • Automatic electric heater behind iPad security enclosure for cold weather insulation • Automatic vented fan for warm weather cooling

Hardware

NXFM100 and NXFM150 mounting rails on backside of pedestal (hardware included) • Openings for routing wiring in top and bottom of pedestal

More Information
Shipping Length 10
Shipping Width 18
Shipping Height 65
