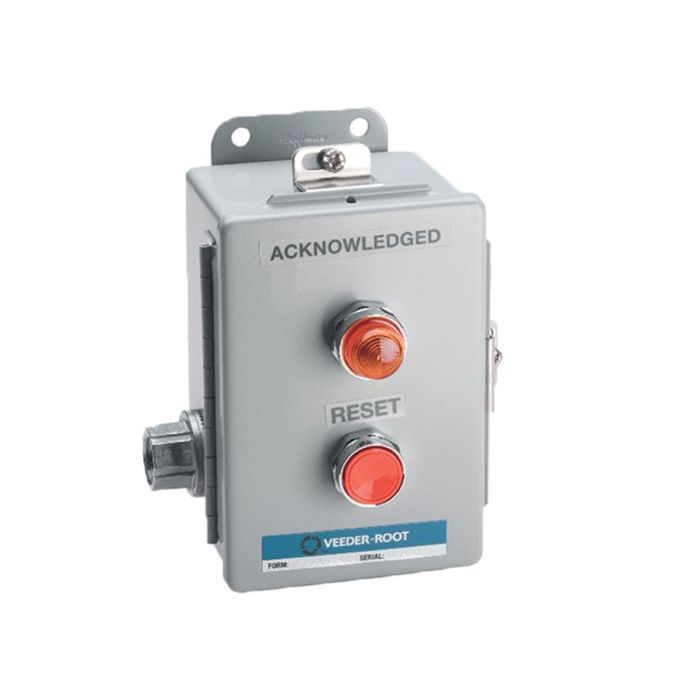

Veeder-Root OVERFILL ALARM ACKNOWLEDGE SWITCH/RESET (790095-001)
Standard Ground: This item usually ships within 1 business day via standard ground.
Product Form
|
Part Number |
Description |
|
790091-001 |
Overfill Alarm Box |
|
790095-001 |
Overfill Alarm Acknowledgement Switch / Reset |
Key Features
- Economic solution that allows alerting of multiple tanks
- Periodic testing is easy and does not require spare parts
- Not susceptible to failures from tank tightness or pressure
- Meets revised 2015 EPA UST regulations for overfill protecting equipment when used alone or in conjunction with an automatic shutoff device
- Allows user to program individual alarm levels for each tank onsite
- Weatherproof Construction
- LED Light Bulb with a longer life span, increased energy efficiency and durability, with no UV ray emission and minimal heat generation.
Specifications
Box Dimensions: 6.8"Lx 4.3”W x 3"D
Overfill Alarm Box
|
Console Compatibility |
|
|
Audible Alarm Noise Level |
78 – 103dB at 10ft. |
|
Audible Alarm “Time On” |
Adjustable from 0-60 Seconds |
|
Visual Alarm Lamp Rating |
25 watt, 120 VAC Lens |
|
Visual Alarm Flashing Rate |
75 per minute |
|
Alarm Unit Dimensions |
10.3"L x 8"W x 4"D |
|
Lens Dimensions |
4”Æ x 3.5”D |
|
Operating Temperature Range |
– 40 ° C to +65 ° C / - 40 ° F to +150 ° F |
|
Supply Voltage |
120 VAC, 50 / 60 Hz |
Overfill Alarm Acknowledgement Switch / Reset
|
Alarm Unit Dimensions |
6.8"L x 4.3”W x 3"D |
|
Operating Temperature Range |
– 40 ° C to + 65 ° C / - 40 ° F to + 150 ° F |
|
Supply Voltage |
120 VAC, 50 / 60 Hz |
|
Acknowledgment Lamp |
120 VAC, Amber Lens |
