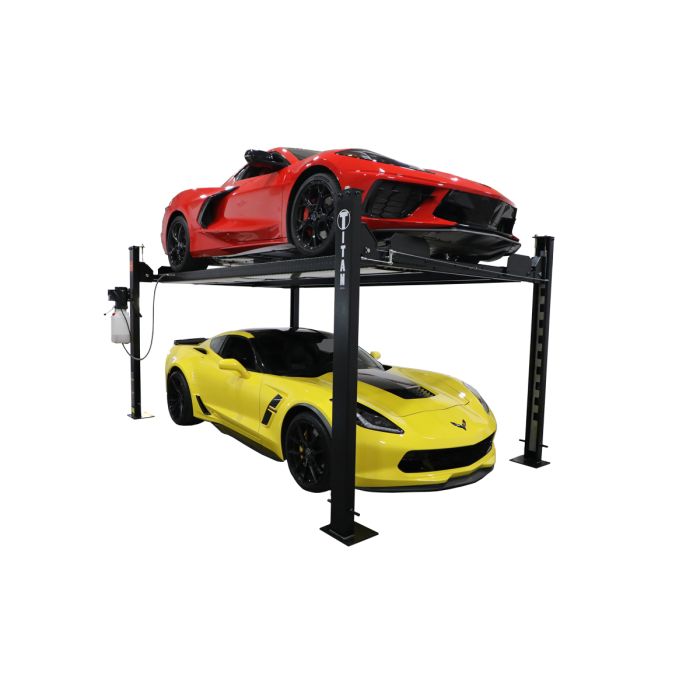

Titan SDPL-8000 4-Post Lift

Special Price $3,499.00 Regular Price $4,800.00
SKU
TTN*SDPL-8000

Freight: This item usually ships within 3 business days via freight service.

The Titan 4-post parking/storage lifts are ideal for automotive enthusiasts or for those looking to free up garage space. They are heavy-duty lifts with one-piece diamond plated runways, 3 inch cylinders, and a durable, scratch-resistant, powder-coated midnight black finish.

They come with a 110 Volt power unit that easily adapts to most residential applications. It has a heavy-duty, multiple-position locking mechanism and enclosed carriage arms to ensure maximum safety. Easy-operation lock handle is located by power unit, minimizing any bending or squatting. There are many options available to personalize the lift to your needs. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble-free service.

Features

  • 8,000 lb lifting capacity
  • Aircraft quality cables rated at 14,500 lb
  • 18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Single point safety lock release handle located near power unit
  • Primary locking system with secondary slack safety lock
  • Large 3" diameter cylinder
  • Powder coated in midnight black finish
  • Diamond plated steel approach ramps
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty

Included

  • Caster Kit
  • Jack tray
  • 3 Drip Trays
  • Steel Ramps

Optional

  • Sliding Jacks Available
  • Aluminum Ramp Upgrade

SPECIFICATIONS

Center of Baseplates - Width 93"
Outside of Baseplates - Width 103-1/2"
Outside of Columns - Width 100-3/4"
Width Between Columns 94-3/8"
Overall Width w/Motor 114-3/4"
Drive-Thru 80"
Between Runways 37-1/2"
Out to Out - Runways 74-3/4"
Length of Runway 165-1/2"
Width of Runway 18-5/8"
Total Length of Ramp 37"
Baseplate Dimensions 10-1/4" x 12"
Column Dimensions 3-1/4" x 6"
Center of Baseplates - Length 163-1/2"
Outside of Baseplates - Length 175-1/2"
Outside of Columns - Length 169-3/4"
Inside of Columns - Length 157-3/4"
Overall Length w/Ramps 208-5/8"
Lifting Height 4-3/4" - 74-3/4"
Overall Height 86-1/4"
Lifting Capacity 8,000 lb
Net Weight 1,643 lb
Power Unit 110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP



Shipping Info

Shipping Length 171"
Shipping Width 22"
Shipping Height 39"
Shipping Weight 1,735 lb
More Information
Shipping Length 170
Shipping Width 22
Shipping Height 39
