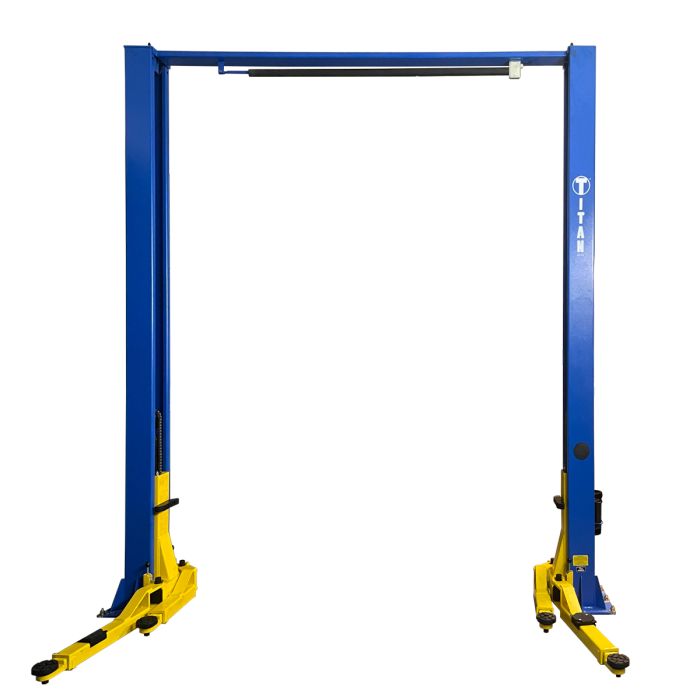

Titan 9,000 lb 2-Post Clear Floor Lift
Freight: This item usually ships within 3 business days via freight service.
The Titan 9,000 LB 2 Post lifts are commercial-grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system; everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.
The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble-free service.
Features
- Commercial Grade
- 9,000lb. Lifting Capacity
- Asymmetric Arm Design
- Rubber Door Guards
- Padded Overhead Safety Shut-off Bar
- Dual-Point Safety Release
- Durable Powder-coated Finish
- Low-profile Lifting Arms equipped with Automatic Arm Restraints
- Dual 3” Cylinders with Low Friction Chain Rollers
- Threaded Lifting Pads
- Stackable Truck Adapters
- Space-saving Power Unit Mounting Bracket
- Sleek Internal Hose Routing with Integrated Hose Guards
- Anchor Bolt Kit Included
- 1 Year Electric/Hydraulic Parts Warranty
- 5 Year Structural Parts Warranty
SHIPPING
| Shipping Length | 145" |
|---|---|
| Shipping Width | 19" |
| Shipping Height | 44" |
| Shipping Weight | 1,380 lb |
| Shipping Length | 146 |
|---|---|
| Shipping Width | 19 |
| Shipping Height | 44 |
| Lifting Capacity | 9,000 lb |
| Power Unit | 220V |
| Amp Draw | 15 - 26 amp |
| Lifting Speed | 45 sec |
| Width | 137.80" |
| Height | 142.95" |
| Width Between Columns | 113.62" |
| Drive Thru Clearance | 103.98" |
| Lifting Height | 4.65" - 72.84" |
| Shipping Weight | 1,380 lb |
| Concrete Spec Minimum | 4" @ 3000PSI |
