Titan 12,000 lb Heavy Duty 4-Post Lift

Item # TTN*HD4P-12000

More Views

Titan 12,000 lb Heavy Duty 4-Post Lift

Item # TTN*HD4P-12000

Was: $4,346.83

Our Price: $3,029.00

You Save: $1,317.83 (30%)

Freight: This item usually ships within 3 business days via freight service.

Manual
Description

Details

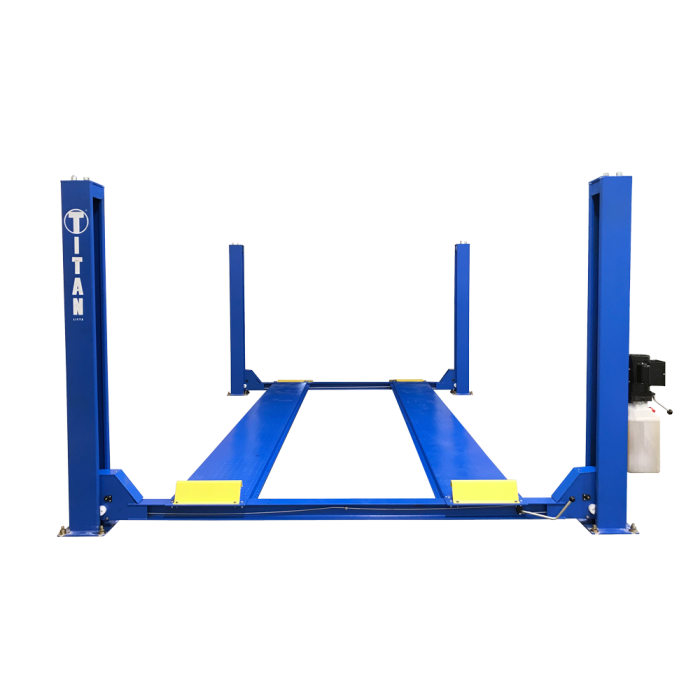

The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.

  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty
Additional Information

Additional Information

Lifting Capacity 12,000 lb
Power Unit 220V
Amp Draw 15 - 26 amp
Length 195.25"
Width 137"
Height 88"
Width Between Columns 118.5"
Drive Thru Clearance 104.5"
Under Runway Clearance 63"
Width Between Runways 48"
Runway Width 19.25”
Runway Length 191.25”
Lifting Height 67"
Concrete Spec Minimum 6" @3000PSI
