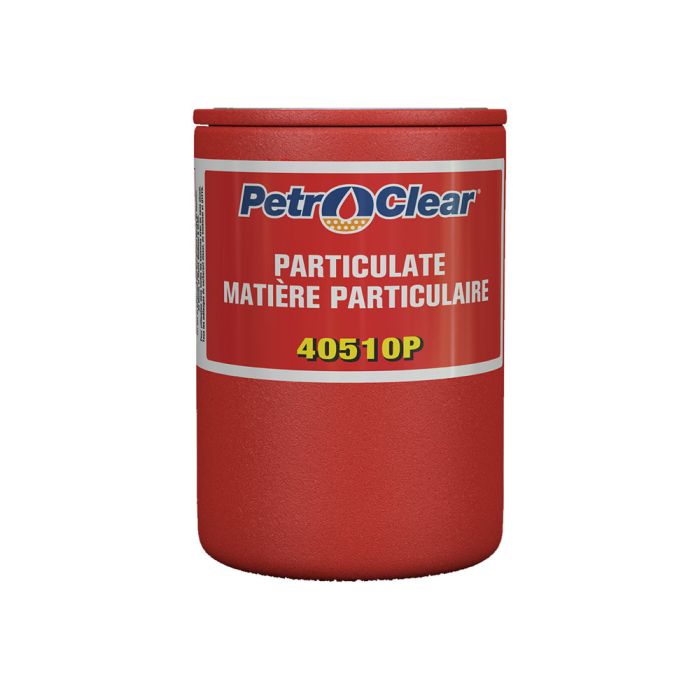

Petro Clear 40510P Particulate Removing Spin-on Filter

PetroClear® model 40510P is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils. This filter is designed for particulate removal only and WILL NOT REACT TO WATER IN FUELS OR PHASE SEPARATION IN ETHANOL BLENDED GASOLINES TO SLOW FLOW.

The PetroClear® model 40510P utilizes a 10 micron (nominal) cellulose media to remove particulate from gasolines and diesel fuels including all Ethanol blended gasolines, Biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particulate 10 microns (nominal) or larger.

The maximum flow rate for PetroClear® 40510P is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).

PetroClear® 40510P utilizes a standard 1"-12 UNF mounting thread ref. (3/4" flow) required for most spin-onfilter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers, as well as with adapters used in the aftermarket.

• Case Quantity = 12 filters
