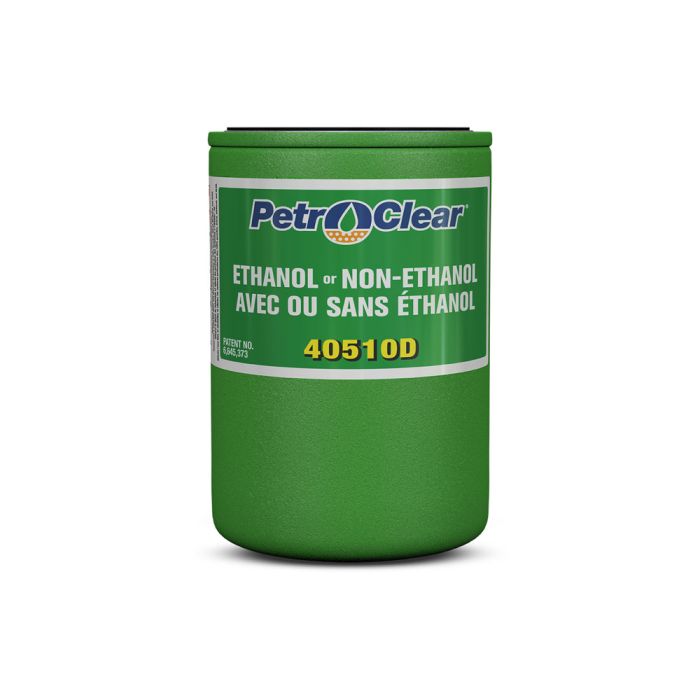

Petro Clear 40510D Particulate Removing, Water Sensing & Phase Separation Spin-on Filter

PetroClear® model 40510D is a particulate removing, water sensing and phase separation detecting spin-on filters. PetroClear® 40510D is designed to slow flow as an indicator of the presence of water in neat gasoline, diesel and biodiesel.

The PetroClear® model 40510D utilizes a 10 micron (nominal) cellulose media to remove particulate 10 microns (nominal) or larger from neat gasoline, ethanol blends, diesel and biodiesel. The PetroClear® model 40510D also senses water in neat gasoline, diesel and biodiesel. The PetroClear® model 40510D provides phase separation detecting capabilities for ethanol-blended gasoline. It utilizes a super absorbent media for sensing water and a chemical core assembly to detect and react to phase separation.

The maximum flow rate for PetroClear® model 40510D is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar).

PetroClear® model 40510D “Dual Purpose” filter utilize a standard 1" – 12 UNF mounting thread ref. (3/4" flow) required for most spin-on filter Adapters used in Gilbarco, Wayne, Bennett, Tokheim and other major manufacturers’ dispensers, as well as with Adapters used in the aftermarket.

• Case Quantity = 12
