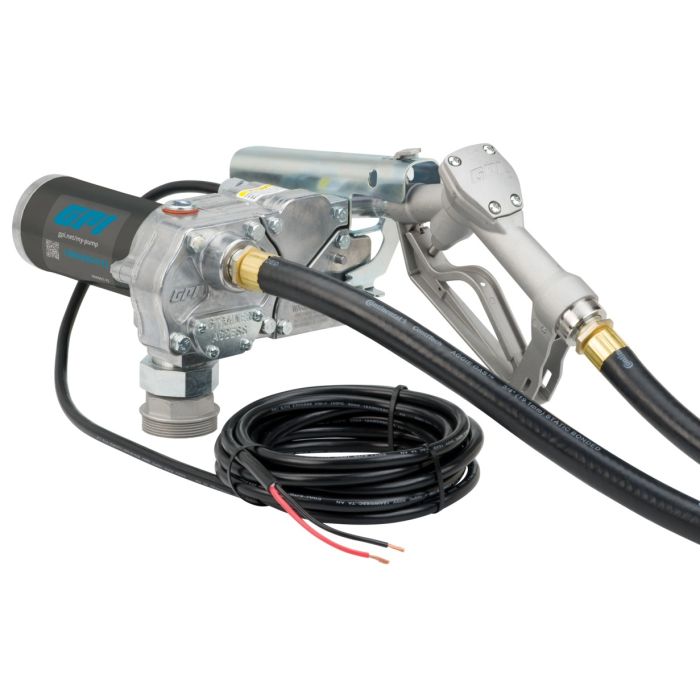

GPI M-150S-MU 12 Volt DC 15 GPM Aluminum Gear Pump

As the best-selling retail fuel transfer pump, the M-150S provides longer run times and award-winning performance year-over-year. The GPI M-150S series is the pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 15 GPM (57 L/min). The M150S-MU features a self-priming rotary gear design, a 12-volt (dc) motor, and a lightweight cast aluminum body that resists corrosion. It comes with a manual unleaded nozzle, a telescoping suction pipe to fit tank depths between 15″ and 40″, convenient spin collar for easy installation, a lockable nozzle holder to deter theft, a fuel dispensing hose, and a factory-installed, 18-ft. (5.5 m) power cord.

Features

• Designed for permanent mounting on vented storage tanks.
• Circuit breaker motor protection extends motor life.
• More operating hours means longer pump life and greater value.
• Light-weight aluminum body provides corrosion resistance and reduces tank stress.
• Lockable nozzle holder protects your investment and deters theft.
• Lockable nozzle holder protects your investment and deters theft.
• Designed for permanent mounting on vented storage tanks.
• UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

• Flow Rate: 15 GPM (57 L/Min)
• Type: Rotary Gear
• Current Draw: 18 Amps
• Motor: 1900 RPM, 1/5 HP, UL listed to US and Canadian standards
• Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
• Operating Temperature: -20°F to 125°F (-29°C to 52°C)
• Housing: Lightweight, corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 3/4 IN. Female NPT
• Mounting: Spin Collar, 2 IN. Male NPT
• Dispensing Hose: Buna-N electrically conductive, 12 FT. (3.7 M) X 3/4 IN.
• Suction Pipe: Polypropylene, Telescoping, 15 to 40 IN.
• Power Cord: 18 FT. (5.5 M), 12/2 AWG
• 2 year warranty
• UPC: 031401150605

In The Box

• Includes the M-150S 15 GPM pump with spin collar
• Manual unleaded nozzle
• Lockable nozzle holder
• Dispensing hose
• Factory-installed power cord
• Telescoping suction pipe
• Tank adapter
• Fuse assembly
• Owners manual
