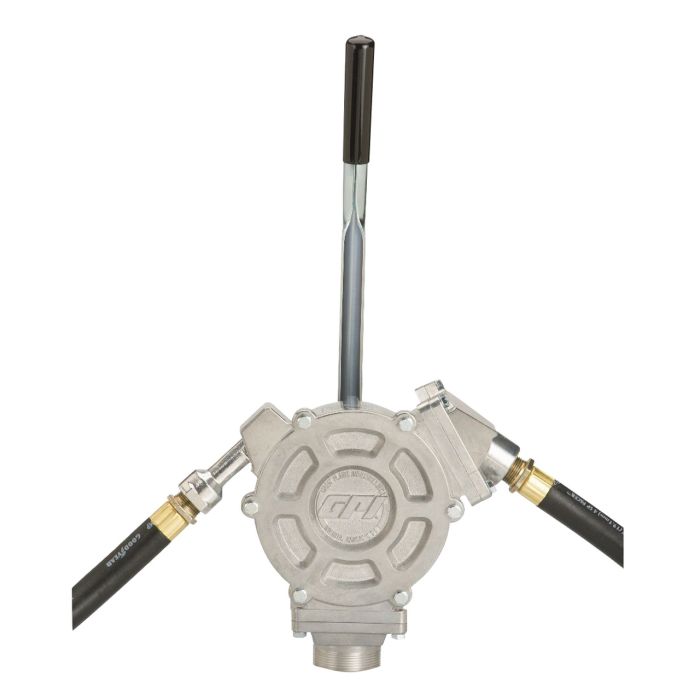

GPI 114000-10 (HP-100-UL) Lever Action Fluid Transfer Hand Pump

The HP-100 Dual-flo hand pump is a premium hand pump that is reliable and versatile. For high volume fuel transfer, use the high handle position. The HP-100 generates twice the flow of any other hand pump. for heavier fluids or for easier pumping, use the second stroke setting. in either handle position, expect economical, trouble-free operation. Up to 50 Gal/189 Litres per 100 Strokes. Two piece Telescoping suction pipe, 3/4 in. dia. X 8 ft. (2.44 m) dispensing hose, Pump, Lockable handle liver, Bung aluminum adapter and Anti-Siphon Valve.

Features

• Dual-Flo piston design pumps fluid on both the push and pull stroke.
• Two-position handle provides versatility for both high and low flow rate applications.
• Light-weight aluminum body provides corrosion resistance and reduces tank stress.
• Handle lock deters fluid theft.
• Comes with 3/4 in. x 8 ft. (2.44 m) Nitrile fuel dispensing hose with static wire and plastic nozzle.
• Fits a 2 in. NPT bung.
• For use with diesel (diesel blends to B20), gasoline (alcohol blends up to E15), hydraulic fluid, kerosene and 30W oil.
• U.L. listed to U.S. and Canadian standards & 2 year warranty.

Specifications

• Type: Piston
• Flow Rate: Up to 50 gallons per 100 stroke cycles (Up to 189 litres per 100 stroke cycles)
• Housing: Cast aluminum
• Nozzle: Metal
• Inlet: 1 IN. NPT
• Outlet: 3/4 IN. NPT
• Mounting: Direct mount, 2 IN. Male NPT
• Dispensing Hose: Buna-N electrically conductive, 8 FT. (2.43 M) X 3/4 IN.
• Suction Pipe: Polypropylene, telescoping, 15 to 40 IN.
• 2 year warranty
• UPC: 031401114102

In The Box

• Includes the HP-100-UL Up to 50 Gal per 100 strokes hand pump
• Telescoping suction pipe
• Dispensing hose
• Lockable lever
• Bung adapter
• Owners manual
