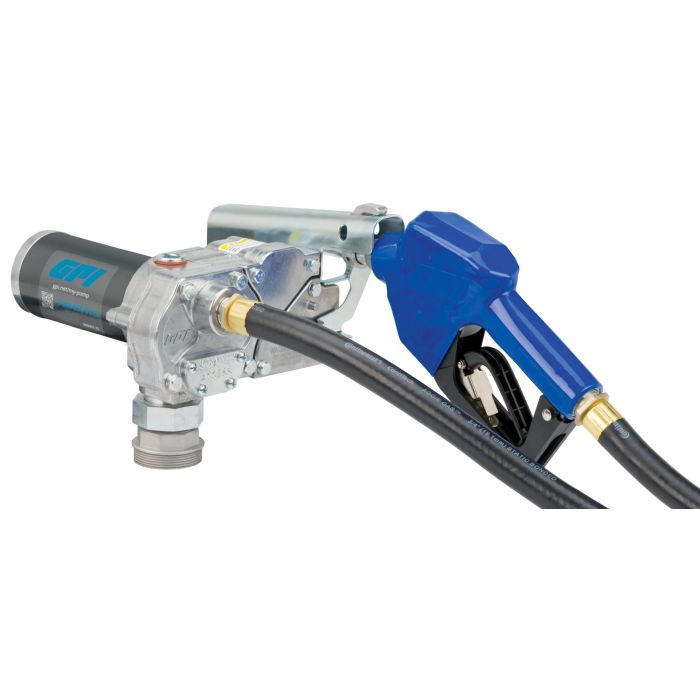

GPI 110000-82 (M-1115S-AU) 115V 12GPM Fuel Transfer Pump W/ Automatic Unleaded Nozzle

123321 – GPI 115 Volt AC Fuel Pumps are designed for stationary locations and offers a 30 minute duty cycle from a permanent magnet motor. * UL Listed and CSA Certified Motor * Comes with 12 ft. of 3/4″-inch Grounded Hose * Overload Protected Motor for Long Life * Convenient 2″ Npt Spin Collar for Easy Installation * Automatic Nozzle * Adjustable Suction Pipe 3/4″ Npt x 22″-40″ * Use with Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15) and Kerosene * Blended Fuels Compatible * Delivers up to 12 GPM * 2-Yr. Warranty

Features

• Designed for stationary locations in fleet, agriculture or industrial applications
• Circuit breaker motor protection extends motor life
• Convenient spin collar for easy installation
• For use with gasoline, diesel fuel, ethanol blends, and kerosene
• Lightweight aluminum body provides corrosion resistance and reduces tank stress.
• Lockable nozzle holder protects your investment and deters theft.
• Convenient spin collar for easy installation and versatile pump mounting.
• UL Listed and CSA Certified & 2-year warranty.

Specifications

• Flow Rate: 12 GPM (45 L/min)
• Type: Rotary Gear
• Current Draw: 1.8 Amps
• Motor: 1400 RPM, 1/8 HP, UL listed to US and Canadian standards
• Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
• Operating Temperature: -20°F to 125°F (-29°C to 52°C)
• Housing: Lightweight, corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 3/4 IN. Female NPT
• Mounting: Spin Collar, 2 IN. Male NPT
• Dispensing Hose: Buna-N electrically conductive with static wire, 12 FT. (3.7 M) X 3/4 IN.
• Suction Pipe: Polypropylene, Telescoping, 15 to 40 IN.
• 2 year warranty
• UPC: 031401110821

In The Box

• Includes the M-1115S 12 GPM pump with spin collar
• Automatic unleaded nozzle
• Lockable nozzle holder
• Dispensing hose w/static wire
• Telescoping suction pipe
• Tank adapter
• Owners manual.
