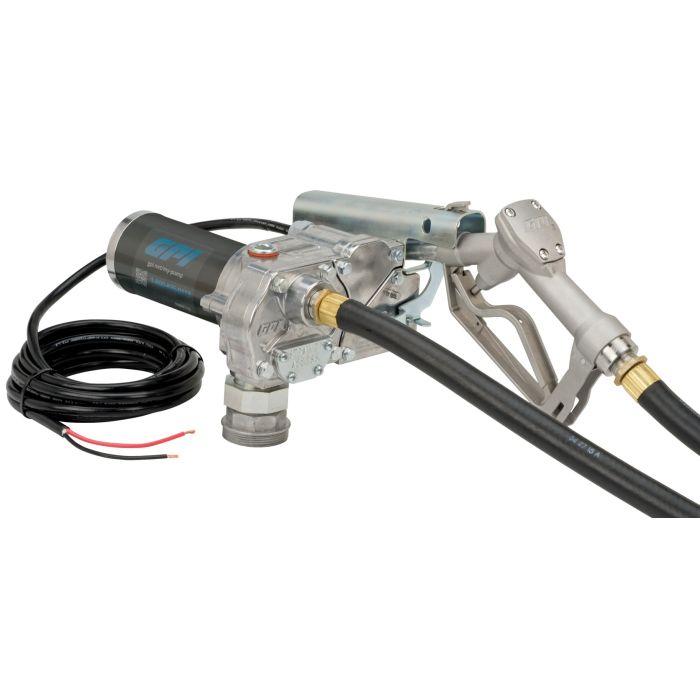

GPI 110000-70 (M-240S-MU) 24V 15GPM Manual Shut-Off Unleaded Nozzle Fuel Transfer Pump

24-Volt DC-Gear Explosion proof meter. Convenient spin collar for easy installation. Use with gasoline (alcohol blends E15), diesel fuel (biodiesel blends B20) and kerosene.

Features

• Rotary gear design reduces wear and high quality 24-VDC motor provide more operating hours for maximum value.
• Convenient spin collar for easy installation and versatile pump mounting.
• Circuit breaker motor protection extends motor life.
• Light-weight aluminum body provides corrosion resistance and reduces tank stress.
• Lockable nozzle holder protects your investment and deters theft.
• Designed for permanent mounting on vented storage tanks.
• UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

• Flow Rate: 15 GPM (57 L/min)
• Type: Rotary gear
• Current Draw: 9 amps
• Motor: 1900 RPM, 1/5 HP, UL listed to US and Canadian standards
• Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
• Operating Temperature: -20°F to 125°F (-29°C to 52°C)
• Pump Housing: Lightweight, corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 3/4 IN. Female NPT
• Mounting: Spin Collar, 2 IN. Male NPT
• Hose: Buna-N electrically conductive, 12 FT. (3.7 M) X 3/4 IN.
• Suction Pipe: Polypropylene, Telescoping, 15 IN. to 40 IN.
• Power Cord: 18 FT. (5.5 M), 12/2 AWG
• 2 year warranty
• UPC: 0314011124521

In the Box

• Includes the M-240S 15 GPM pump with spin collar
• Manual unleaded nozzle
• Lockable nozzle holder
• Dispensing hose
• Factory-installed power cord
• Telescoping suction pipe
• Tank adapter
• Fuse assembly
• Owners manual
