Fill-Rite NX25-120NB-AH 120V AC 25 GPM Fuel Transfer Pump With Meter & Nozzle
Special Price
$1,214.99
Regular Price
$1,420.00
SKU
FIL*NX25-120NB-AH
BACKORDER: This item is currently on backorder, but still available for purchase.

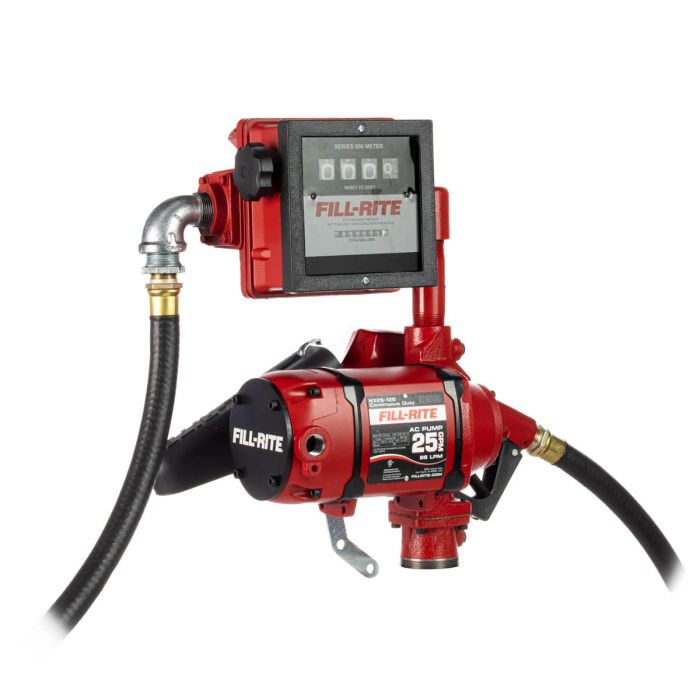

The NX25-120NB-AH model is a 120V AC, 25 GPM premiere fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.
- Unmatched Performance - Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment
- Continuous Operation – brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime
- Energy Efficient - Consumes up to 45% less electricity, slashing operating costs and boosting efficiency
- Ultra-Lightweight – pump weighs 60% less at only 25 pounds, making installation faster and strain free
- Reduced Maintenance Costs — 75% reduction in common field repair costs through patented design and robust construction
- Powder-Coated Exterior – thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
| Max Flowrate | 25 |
|---|---|
| Flowrate Range | 0-25GPM |
| Inlet / Outlet Thread Size (in.) | 1.25 / 1 |
| Motor Power | 0.33 |
| Current Range | 3.5 |
| Dry Vacuum (in. Hg) | 11 |
| Max Discharge Pressure | 25 |
| Discharge Head (ft.) | 48.5 |
| Max Operating Pressure (PSI) | 25 |
| Meter | 901C Mechanical Meter (Gallons) |
|---|---|
| Discharge Hose | ¾” X 12’ UL Listed Hose with Static Ground Wire |
| Nozzle | ¾” Automatic Unleaded Nozzle |
| Swivel / Swivel Thread Type | No |
| Pulser | No |
| Cable Gauge | 16 |
| Cable Connection | Bare Leads |
| Shipping Length | 22 |
|---|---|
| Shipping Width | 20 |
| Shipping Height | 18 |
