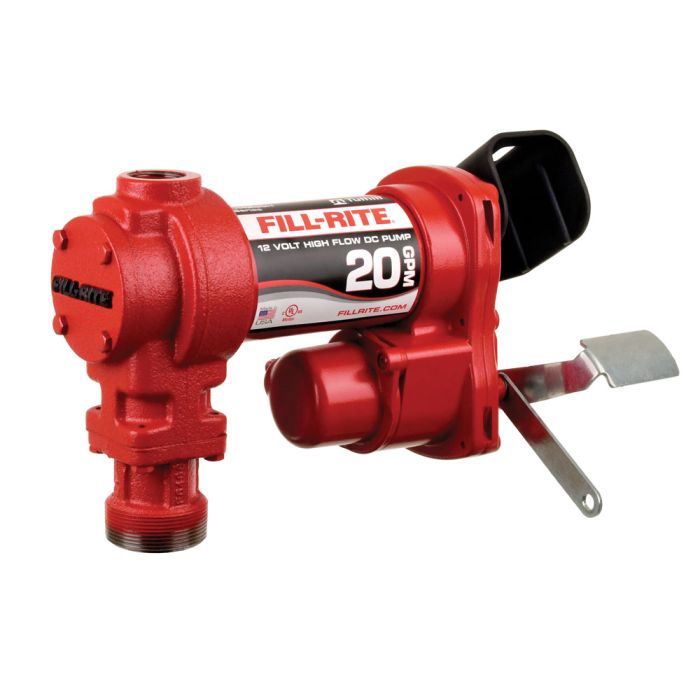

Fill-Rite FR4204H 12V DC 20 GPM Fuel Transfer Pump
Standard Ground: This item usually ships within 1 business day via standard ground.
Fill-Rite's 4200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.
The FR4204H model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.
- Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
- Easy Installation – adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
- Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Equipment Safeguard – built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
- Reliable On/Off Switch – on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
- Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
Max Flowrate: 20
Flowrate Range: 0 - 20 GPM
Inlet / Outlet Thread Size (in.): 1 / 1
Mounting Size / Thread / Type: 2 / NPT / Electric
Duty Cycle: 30 min
Motor Power: 0.25
Power Type: DC
Current Range: 19 - 19
Operating Temperature Range: -17°F to 105°F
Suction Lift (ft.): 8
Dry Vacuum (in. Hg): 5
Max Discharge Pressure: 16
Discharge Head (ft.): 37
Max Operating Pressure (PSI): 16
Viscosity Range (cSt): 1 to 4
