Piusi F00408U0A K24-UL M/F 1"NPT Digital Meter

Special Price $345.00 Regular Price $425.00
SKU
PIU*F00408U00

Drop Ship: This item is shipped from the manufacturer via standard ground.

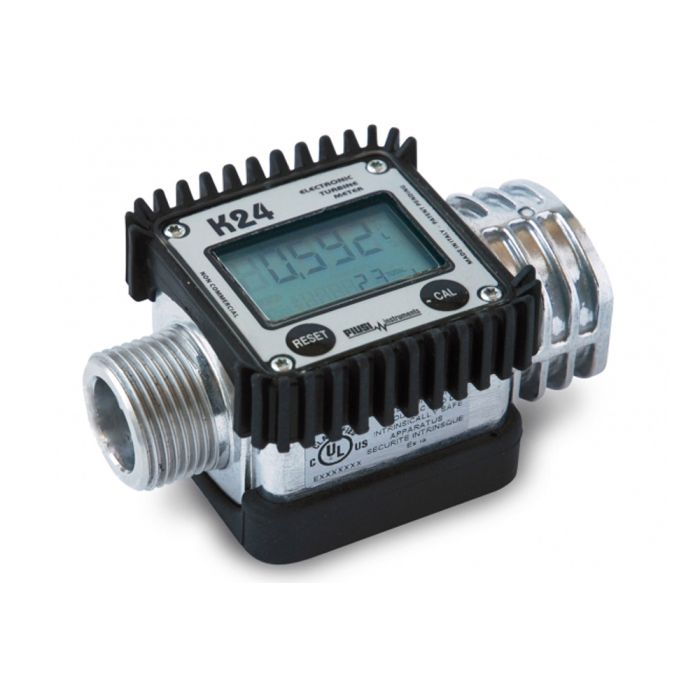

The new UL-approved K24 In-line Turbine Meter is suitable for use with Gasoline, Diesel, and Kerosene. The UL (Underwriters Laboratory) approval assures the product and its components are suitable for the application specified. The meter is easy to install and comes equipped with a rotatable screen, sturdy aluminum casing, and sealed electronic card, making the K24 the ideal instrument for fluid monitoring under any condition.

  • Reinforced aluminum body
  • Polypropylene turbine
  • Impulse type signals: single channel, reed switch
  • Electronic card with LCD display
  • 5 digit partial total from 0.1 to 99999
  • 6 digit total from 1 to 999999
  • Resettable total available
  • Flow rate 2 - 32 GPM
  • Flow rate indication
  • Repetitiveness: 0.2%
  • Loss of pressure: <0.4 psi @ 30 GPM
  • Can be calibrated (batch total)
  • Powered by two AAA batteries (versions A & O)
More Information
Shipping Length 5
Shipping Width 4
Shipping Height 3
Compatible Liquids Diesel, Gasoline, Kerosene
Inlet 1"
Outlet 1"
Flow Rate 2 - 32 GPM
Pressure Rating 300 PSI
Connection NPT
