Piusi F0043011A K200 Electric Flow Grease Meter GR/KG 1/8" BSP
Drop Ship: This item is shipped from the manufacturer via standard ground.

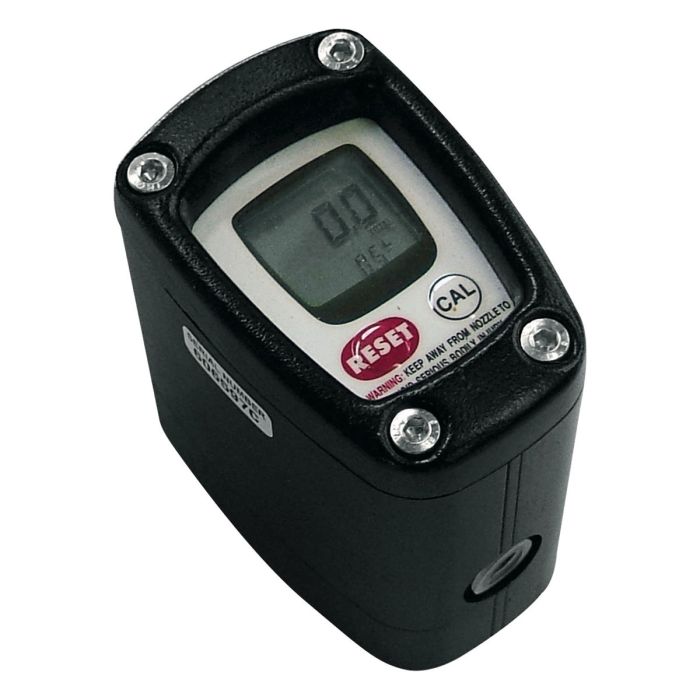

The PIUSI K200 product is an electronic flow meter suitable for the monitoring of lubricating oil and diesel.
K200 as electronic flow meter shows on the display a partial-total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999.
HIGH PRECISION
The K200 digital flow meter has been designed to ensure precise measurement of the quantity dispensed. Equipped with acetal resin oval gears, the K200 oil flow meter can monitor the dispensed flow of low, medium and high viscosity fluids such as fuels, lubricating oils and other special fluids compatible with the construction materials, for non-commercial dispensing.
RELIABLE OVER TIME
K200 consists of a body with aluminum measuring chamber for maximum reliability over time. The pulser type is reed switch, single-channel for better traceability of the quantity dispensed for a maximum flow rate of 0.66 GPM and a metering accuracy of +/- 0.5%.
These features are also included in the K200 flow meter for oil and diesel:
- Repeatability 0.2%.
- Pressure drop < 7.25 psi at the max. flow rate.
- 1/8" BSP Inlet/Outlet
| Shipping Length | 6 |
|---|---|
| Shipping Width | 5 |
| Shipping Height | 3 |
