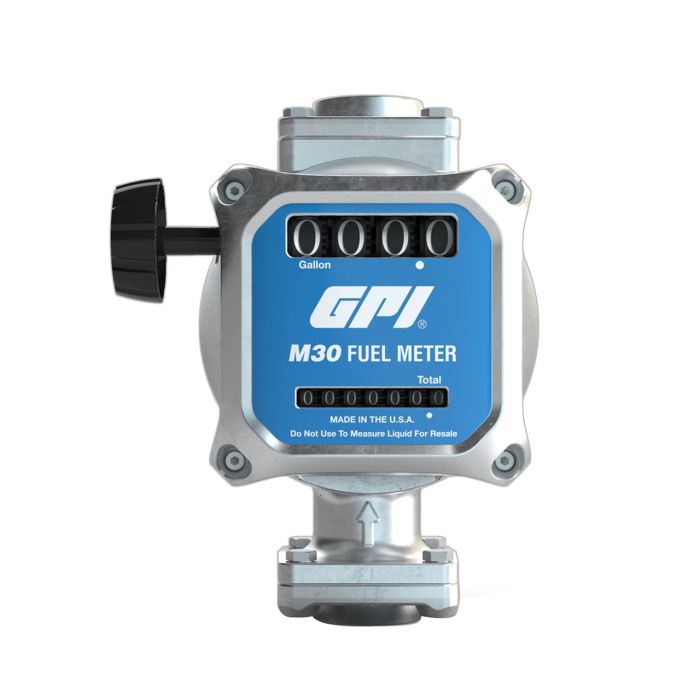

GPI M30-G8N Meter, GAL NPT (BOT-TOP) UL

Special Price $229.99 Regular Price $307.00
SKU
GPI*165100-01

There may be extended lead times on this product.

Drop Ship: This item is shipped from the manufacturer via standard ground.

The M30 Mechanical Fuel Meter is designed for the field measurement of thin viscosity petroleum fuels only and intended for use with pump systems in the 5 to 30 GPM or 19 to 114 L/m flow range (not intended for gravity flow systems). Using mechanical gears, these meters translate flow data from a nutating disk into calibrated units which are indicated on the face of the meter.

Note: Designed, tested and approved for use with thin viscosity petroleum fuels such as gasoline blends (up to E15), diesel fuel blends (up to B20) and kerosene.

Features

  • Easily attaches to the new G20 fuel transfer pump
  • Features simple four-bolt connections that allow the meter to be mounted in multiple directions
  • Magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
  • Within +/- 2% across a flow range from 5 to 30 GPM (19 to 114 L/min)
  • Easy to calibrate

Specifications

  • Unit of Measure: U.S. Gallon
  • Flow Range: 5 to 30 GPM
  • Inlet/Outlet: 1 in. NPT
  • Max Batch Total: 999.9
  • Max Cumulative Total: 999,999.9
  • Operating Temperature: -20° F to 125° F (-29° C to 52° C)
  • Max Operating Pressure: 50 PSI (3.4 bar)
  • Technology: Nutating Disc with Magnetic Drive
  • Accuracy: ±2%; (Accuracy is factory calibrated using diesel fuel)
  • Material (Housing, Cover & Fittings): Aluminum
  • Wetted Material:
    • Nutator Assembly: PBT (Polybutylene Terephthalate), Stainless Steel
    • Seals: NBR (Nitrile Butadiene Rubber)
    • Mag-Drive: Acetal, Stainless Steel, Neodymium (Nickel Plated)
  • Approvals: UL Listed
More Information
Compatible Liquids Diesel, Gasoline, Kerosene
Inlet 1" NPT
Outlet 1" NPT
