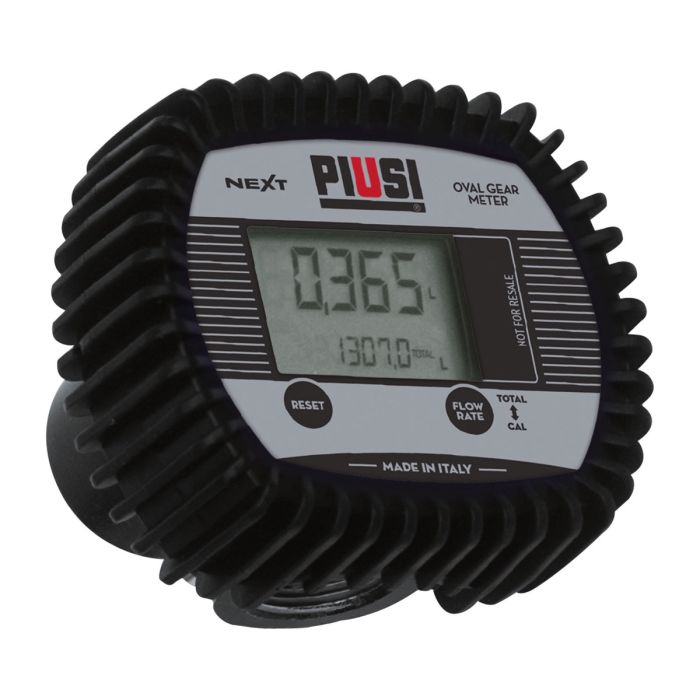

Piusi F00486150 NEXT/2 Oval Gear Electronic Oil Flow Meter 3/4" BSP
Special Price
$259.00
Regular Price
$314.00
SKU
PIU*F00486150
Drop Ship: This item is shipped from the manufacturer via standard ground.
NEXT/2 is an oval gear electronic flow meter in acetal resin for controlling non-commercial dispensing of low, medium and high viscosity fluids including oils and other special fluids compatible with construction materials.
MAIN FEATURES
- Body with aluminum measuring chamber.
- 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
- 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
- Resettable total.
- Repeatability 0.2%
- Loss of pressure < 7.25 PSI at maximum flow rate
- Flow rate up to 1.5-15 GPM
- Accuracy +/- 0.5%
- Maximum operating pressure 1015 PSI
- Bursting pressure: 2030 PSI
- 3/4" BSP Inlet/Outlet
Shipping Length | 7 |
---|---|
Shipping Width | 6 |
Shipping Height | 5 |
Compatible Liquids | Oil |
