Sotera 115V AC Chemical Transfer Pump, Chemtraveller

Special Price $1,219.99 Regular Price $1,482.00
SKU
FIL*SS465BX713

Drop Ship: This item is shipped from the manufacturer via standard ground.

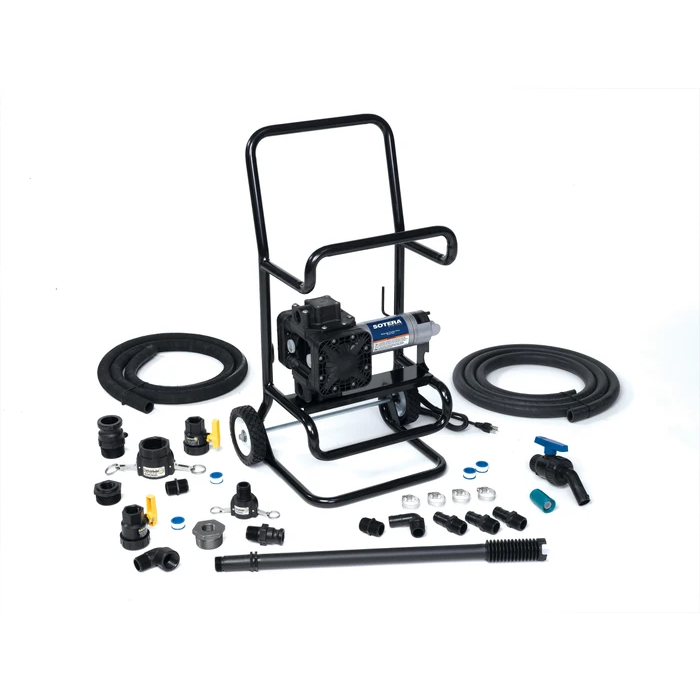

The SS465BX713 model is a 115V AC Chemtraveller® chemical transfer system. This Sotera Chemtraveller bundle includes a portable frame, polypropylene nozzle, Norwesco® anti-drip nozzle tip, and additional chemical fittings.

  • Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
  • Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
  • Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment
  • Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
  • Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
  • 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business

Sotera is the standard for reliable fluid transfer in agricultural and industrial applications. Inspired by the Greek word for “care and protection”, Sotera has been delivering simplicity, accuracy, and safety for nearly 25 years.

Our customers recognize Sotera for its durability and years of elite performance in the field. Proudly manufactured in the USA, Sotera equipment is constructed with versatile materials to withstand rugged everyday use, extreme weather exposure, and a wide range of fluids.

Sotera is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fluid transfer equipment.



Performance:



Dry Vacuum 8
Gross Weight (lbs) 52.600 lbs
Package Depth (in) 35
Rated Voltage/Power 115V AC
Max Flowrate 13
Suction Lift 9 '
Additional Accessories 2’ EPDM hose, 9’ EPDM hose, anti-drip tip and 23”- 40” polypropylene telescoping suction tube
Industry Agriculture
Fluid Handling Chemicals
UPC 089404213551
Product Series 400 Chemical
Discharge Hose 1” X 12’ EPDM Hose
Suction Hose 1” X 9' EPDM Suction Hose
Pump Product Type Electric
Valve Valve Nozzle with Tip
Inlet Size (in) 1 "
Outlet Size (in) 1 "
Flow Rate Range (GPM) 0-13GPM
Motor Power (HP) 0.25
Motor Speed (RPM) 2600
Max Discharge Pressure (PSI) 15 PSI
Max Operating Pressure (PSI) 15
Viscosity Range (cSt) 0-3,000 cps
Watts (W) 287
Cable Gauge (GA) 18
Cable Length (ft) 6.6
Cable Connection NEMA-15
Package Width (in) 17
Package Height (in) 15
Product Weight (lb) 29.6
Product Depth (in) 15.2



Items Included:



Suction Hose 1” X 9' EPDM Suction Hose
Discharge Hose 1” X 12’ EPDM Hose
Additional Accessories 2’ EPDM hose, 9’ EPDM hose, anti-drip tip and 23”- 40” polypropylene telescoping suction tube
Cable Length (ft.) 6.6
Cable Gauge 18
Cable Connection NEMA-15
Valve Valve Nozzle with Tip



Dimensions:



Assembled Product Height x Width x Depth (in.) N/A x N/A x 15.2
Assembled Product Weight (lbs.) 29.6
Package Height x Width x Depth (in.) 15 x 17 x 35
Gross Weight (lbs.) 52.600 lbs





More Information
Compatible Liquids Crop Oil, Detergents, Liquid Fertilizers (UAN 28-32), Mild Acids, Pesticides, Soaps, Water
