GPI G20-012-MD, 20 GPM, 12V G Series Module Pump, Manual Nozzle

Special Price $445.99 Regular Price $595.00
SKU
GPI*162000-02

There may be extended lead times on this product.

Drop Ship: This item is shipped from the manufacturer via standard ground.

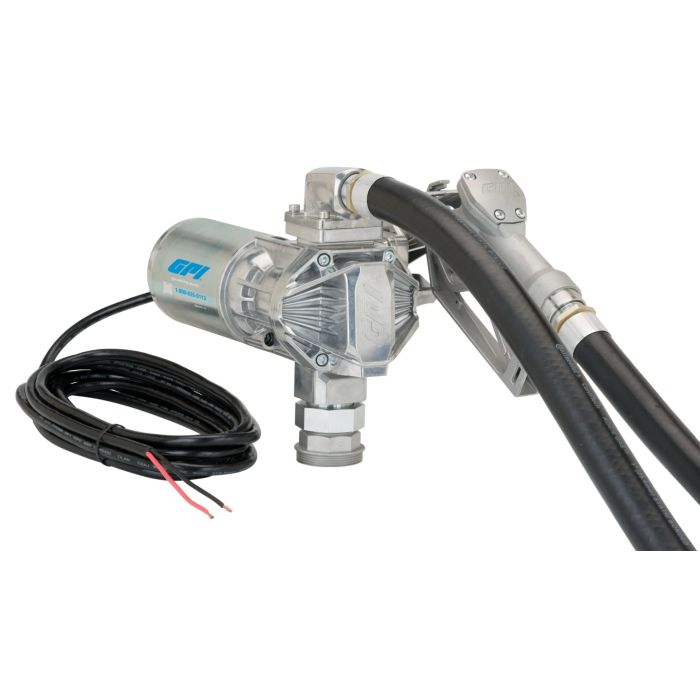

This GPI G20-012-MD fuel transfer pump features a rotary gear design and is made from durable, Corrosion-Resistant Diecast aluminum. The 12-VDC motor delivers flow rates (up to 20 GPM) for gasoline, diesel fuel, ethanol blends, and kerosene. The G20-012-MD is an innovative design with simplified connection points that make attaching accessories fast and easy. The G20-012-MD comes with a manual unleaded nozzle, fuel hose, power cord and adjustable suction pipe. Motor U. L. Listed to U. S. and Canadian Standards.

Features

  • Quick-fit modular makes it easy to attach a filter, meter or both to build your own custom system
  • Lightweight - weighs 19lbs – low stress on tank
  • Lockable nozzle holder
  • Circuit- breaker protection prevents overheating and helps extend pump life
  • Factory-Installed power cord

Specifications

  • Flow Rate: 20 GPM (76 L/min)
  • Type: Rotary Gear
  • Current Draw: 34 Amps
  • Motor: 2000 RPM, 4/10 HP, UL listed to US AND Canadian standards
  • Operating Pressure: 15 PSI (103 BAR) - Standard Pressure
  • Operating Temperature: -20°F to 125°F (-29°C to 52°C)
  • Pump Housing: Lightweight, corrosion-resistant, cast aluminum body
  • Inlet: 1 IN. Female NPT
  • Outlet: 1 IN. Female NPT
  • Mounting: Spin Collar, 2 IN. Male NPT
  • Hose: Buna-N electrically conductive, 14 FT. (4.2 M) X 1 IN.
  • Suction Pipe: Polypropylene, telescoping, 15 IN. to 40 IN.
  • Power Cord: 18 FT. (5.5 M), 12/2 AWG
  • 2 year warranty
  • UPC: 031401007176

In the Box

  • G20 12V DC 20 GPM pump
  • Manual diesel nozzle
  • Dispensing hose
  • Factory-installed power cord
  • Telescoping suction pipe
  • Modular fitting w/hardware
  • Tank adapter
  • Fuse assembly
  • Owners manual
More Information
Compatible Liquids Diesel, E15, Gasoline, Kerosene
Flow Rate 20 GPM
Inlet 1" NPT
Outlet 1" NPT
Material Aluminum
Power Supply 12 Volt DC
