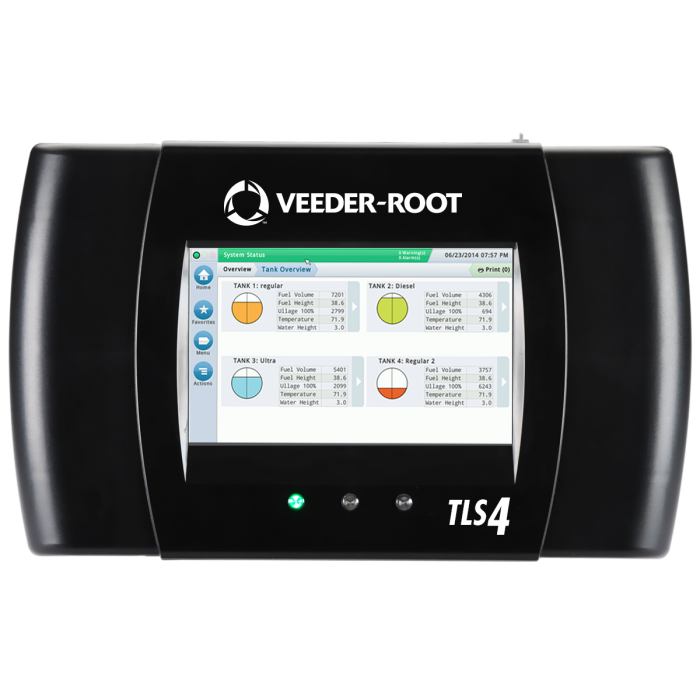

VEEDER-ROOT TLS4 Automatic Tank Gauge
Drop Ship: This item is shipped from the manufacturer via standard ground.
The TLS4 Automatic Tank Gauge system is a self-contained solution, ideal for commercial and industrial fuel monitoring applications. These ATGs combine precision performance with scalability and customization to deliver proven results.
Real-time access to accurate inventory data
These ATGs provide real-time access and automated alerts to critical site information anywhere in the world. Ensure that your site is running at peak performance with a TLS4 or TLS4B ATG. The TLS4 and TLS4B tank level sensors eliminate manual dipping while providing a state-of-the-art interface with a web-based system, streamlining your wet stock management.
PERFORMANCE
The TLS4 and TLS4B Automatic Tank Gauges are premier fuel inventory management solutions. They deliver accurate, crucial information with streamlined inventory and compliance reporting.
PROTECTION
The Veeder-Root TLS4 and TLS4B monitoring systems protect your fuel assets using sensors, probes and advanced software solutions to deliver accurate Underground Storage Tank (UST) and Aboveground Storage Tank (AST) information
PROFITABILITY
The compact and powerful monitoring systems are extremely easy to use. View, configure, and control these ATGs using the graphical user interface or access remotely to manage multiple locations to improve efficiency and reliability.
PARTNERSHIP
Veeder-Root’s proven company history, combined with the highest precision levels in our wet stock management tools, delivers results that matter.
TLS4 Automatic Tank Gauge
|
Part Number |
|
Description |
Notes |
|
|
|
0333434-001 |
|
TLS4 Application Software, 12 Universal Inputs |
Must order one per console |
|
|
|
0860190-020 |
|
TLS4 Console, Color Touch Screen Display, EDIM, UL |
|
|
|
|
0860190-010 |
|
TLS4 Console, No Display, EDIM, UL |
|
|
|
|
0860190-120 |
|
TLS4 Console, Color Touch Screen Display, CDIM, UL |
|
|
|
|
0860190-110 |
|
TLS4 Console, No Display, CDIM, UL |
Software Enhancements
|
Part Number |
|
Description |
Notes |
|
|
|
0333410-015 |
|
Static In-Tank Leak Detection (SLD), for USTs only |
Feature Enhancement Software for TLS4 and TLS4B |
|
|
|
0333410-006 |
|
Continuous Statistical Leak Detection (CSLD), for USTs only |
Feature Enhancement Software available for TLS4 only |
|
|
|
0333410-012 |
|
Business Inventory Reconciliation (BIR)/Hourly Reconciliation Mode (HRM)/Accuchart |
Feature Enhancement Software for TLS4 and TLS4B |
|
|
|
0333410-018 |
|
Timed Sudden Loss Detection |
Feature Enhancement Software for TLS4 and TLS4B |
TLS4 & TLS4B Automatic Tank Gauge Specifications
Console Features |
TLS4
|
TLS4B |
|
System Capacities |
||
|
Universal Probe and Sensor Inputs |
✓ |
✓ |
|
Maximum # of In-Tank Probes |
12/32* |
6 |
|
Maximum # of Universal Probe and/or Sensor Inputs |
12/76* |
6 |
|
TLS-XB Expansion Box |
✓ |
N/A |
|
Interface |
|
|
|
Color Display |
7” WVGA |
7” WVGA |
|
No Display Option |
✓ |
✓ |
|
Printer Option |
✓ |
✓ |
|
Communications |
|
|
|
Configurable RS-232/485 Serial Ports |
2 |
2 |
|
Ethernet Port(s) |
3 |
1 |
|
Ethernet Network(s) |
2 |
1 |
|
External USB Ports |
2 |
2 |
|
Inventory Control |
||
|
Hourly Reconciliation Monitoring (HRM) |
Optional |
Optional |
|
Timed Sudden Loss |
Optional |
Optional |
|
Business Inventory Reconciliation (BIR) |
Optional |
Optional |
|
In-Tank Calibration |
||
|
AccuChart™ |
Optional |
Optional |
|
In-Tank Leak Detection |
||
|
Static Leak Detection (SLD) |
✓ |
Optional |
|
Continuous Statistical Line Leak Detection (CSLD) |
Optional |
N/A |
|
Digital Pressurized Line Leak Detection (DPLLD) |
N/A |
N/A |
|
Additional Functionality |
||
|
3 Years Minimum Data Storage |
✓ |
✓ |
|
Data Logger Built-in |
✓ |
✓ |
|
Centralized Device Management (CDM) |
Optional |
Optional |
|
Free Remote Apps (iOS, Android) for Smart Phones and Tablets |
✓ |
✓ |
|
Web-Enabled Remote Connectivity |
✓ |
✓ |
|
Work Flow Wizard |
✓ |
✓ |
|
Contextual Embedded HELP |
✓ |
✓ |
|
Phase Separation Detection Up to E20 |
✓ |
✓ |
|
Fuel Density Monitoring |
✓ |
✓ |
|
Mag-Flex Tall Tank AST Monitoring |
✓ |
✓ |
|
System Specifications |
|
|
|
Multipoint tank chart, supports up to 5,000 unique points |
✓ |
✓ |
|
Network printer support via Ethernet |
✓ |
✓ |
|
Operating temperature: 0°C to 40°C (32°F to 104°F) |
✓ |
✓ |
|
Storage temperature: -40°C to 70°C (-40°F to 158°F) |
✓ |
✓ |
|
Relative humidity 0-90% (non-condensing) |
✓ |
✓ |
|
Approximate external dimensions |
12.99" x 7.87" x 3.54" |
12.99" x 7.87" x 3.54" |
|
Construction 16GA (0.060"/0.1524cm) powder-coated steel |
✓ |
✓ |
|
Safety Approval Groups |
|
|
|
UL/cUL listed |
✓ |
✓ |
|
ATEX |
✓ |
✓ |
|
IECEx |
✓ |
✓ |
|
NEPSI |
✓ |
✓ |
|
FCC |
✓ |
✓ |
|
EMC |
✓ |
✓ |
|
PESO |
✓ |
✓ |
