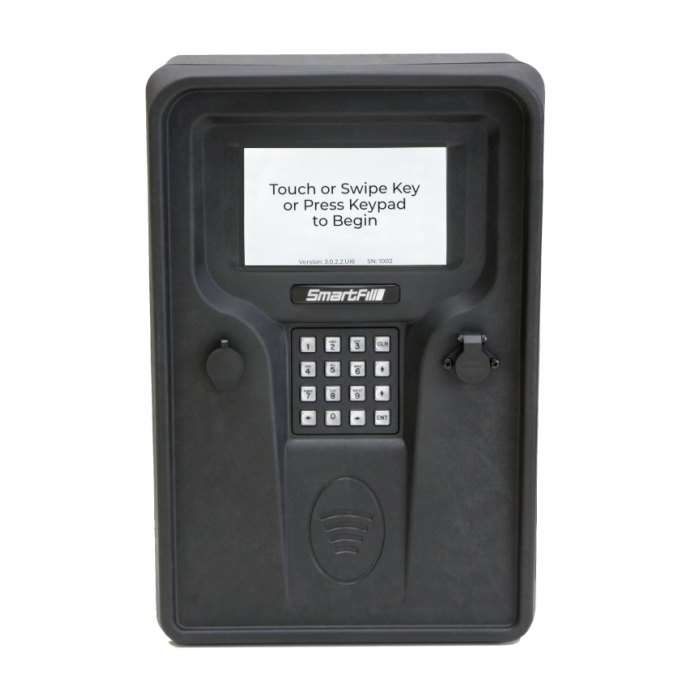

SmartFill Gen3 Fuel Management System
Standard Ground: This item usually ships within 1 business day via standard ground.
The World's Most Functional Fuel Management System SmartFill GEN3, fuel accounting has never been easier, with instant reconciliation, even across multiple sites. Real-time accurate fuel data can be accessed anywhere, anytime; to monitor, manage and report instantly. Known to outlast the bowsers they were originally attached to. Keep your records up-to-date in real-time. Your data is available with no need for any special software to access it. Configure the unit with an intuitive menu based interface. Easy to service the unit with plug and play modules. No need for special technical or electrical skills. Access to fuel by a vehicle and/or driver can be restricted by user configurable settings such as time of day access and fill limits.
A robust system you can rely on
Known to outlast the bowsers they were originally attached to.
Easy to use, Easy to set up
Configure the unit with an intuitive menu based interface. Full color display to make reading simple as possible.
Smart on the Inside
Easy to service the unit with plug and play modules. No need for special technical or electrical skills. Long Lasting, NFC (Near Field Communications) based cards or FOBs for easy user or vehicle identification. Swipe cards and HID cards available with optional reader addon.
Networked Communications
Keep your records up-to-date in real-time. Your data is available with no need for any special software to access it. Control of up to 8 pumps on protocol systems (Gilbarco, Wayne, Compac). Access to fuel data is free via a standard web browser.
- Records fuel use for in excess of 3000 vehicles
- Records the past 5000 fuel transactions in memory.
- No limitations to the quantity of transactions stored online
- Multiple options available for uploading fuel data: Wi-Fi, 3G/4G, USB and Ethernet
- Can be remotely configured and monitored
Tough on the Outside
Proven reliability in extreme weather conditions, a IP66 rated, powder coated steel enclosure ensures continuous operation in all conditions. Tested from -25°C to +55°C, and built with seals designed to stop dust, insects and water from entering the unit.
Enchanced Secruity
Access to fuel by a vehicle and/or driver can be restricted by user configurable settings such as time of day access and fill limits. Fuel access via PINs, NFC FOBs, iButton keys and AVID.
Both AC and DC versions available!
Features:
SF3 Cabinet Dimensions (H x W x D): 17.6″ X 11.8″ X 6.89″ (450 X 300 X 175mm)
Pulser Input: 15VDC 2.5mA
Operating Temperature Range: -40ºF to 131ºF
Power Requirements: AC: 90 VAC (0.21A) – 250 VAC (0.1A) 50/60Hz
Power Requirements: DC: 12 VDC (1.2A) – 24 VDC (0.5A)
Readers: Inbuilt NFC reader, optional iButton, Magnetic-stripe, HID and barcode readers
Display: Blanview TFT-LCD Full Color 7″ (178mm) 800 x RGB [H] x 480 [V] dots
Keypad: Vandal resistant 16 key
Pumps Supported: Mechanical (4), Electronic: Gilbarco (8 hoses), Tatsuno, Compac, Tokheim, Wayne Dart and current loop protocol
Enclosure Construction: Automotive grade, glass-filled nylon
Nozzle Switch: 3.3VDC 0.2mA
Power delay Switch: 36VDC 2A
Relay Outputs (Pumps 1-4): DC switching 24VDC 5A, AC switching 240VAC 10A
Ethernet: 10/100/1000 included
USB: USB2.0 interface included
3G/4G: 700, 800/850, 900, AWS1700, 1800, 1900, 2100 HSPA
WIFI: 802.11b/g/n, 2.4GHz, WEP, 802.11i WPA/WPA2 Personal Security
