Veeder-Root TLS-450 DPLLD W/O SWIFTCHECK (859080-001)
Standard Ground: This item usually ships within 1 business day via standard ground.

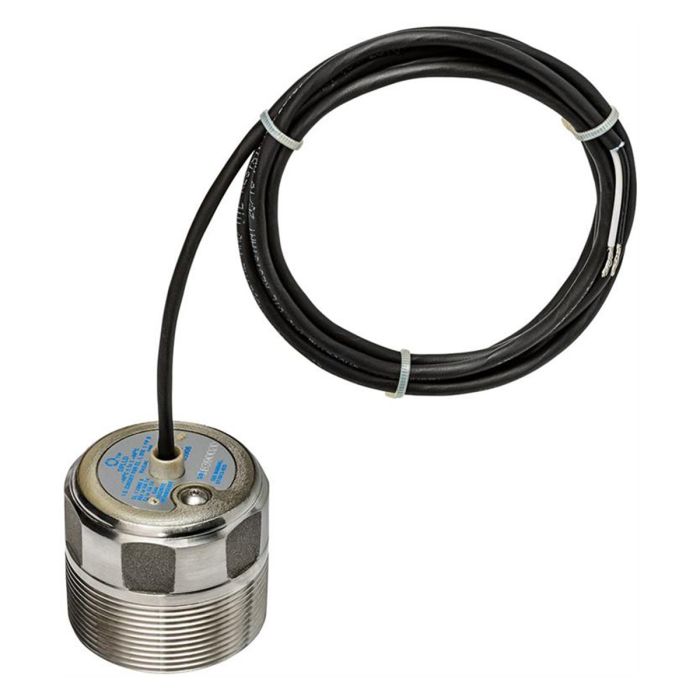

The Veeder-Root Electronic Pressurized Line Leak Detection (PLLD) system is designed to meet your everyday compliance needs. Our patented technology performs precision line leak testing at full pump pressure for 0.1 and 0.2 gallons per hour (gph) and a pressure decay test to meet the U.S. EPA 3.0 gph test requirements. The Veeder-Root Electronic PLLD system works in a variety of pressurized line applications, and offers flexible testing and digital reporting options, helping to detect catastrophic leaks. When paired with a TLS-450PLUS Automatic Tank Gauge (ATG), customers can monitor up to 1178 gallons of fuel line volume.
Specifications:
|
Operating Temperature |
-25 ° F to +130 ° F |
|
Compatible Fuel Types |
|
|
Line Flow Rate |
120 GPM Max w/ Swiftcheck Valve |
|
Operating Range |
0 – 70 PSI |
|
Proof Pressure |
200 PSI |
|
Maximum Vertical Pipeline Height Above Transducer |
11 Feet |
|
Minimum Pump Output Pressure |
23 PSI |
|
Maximum Volume of Fuel Monitored |
|
