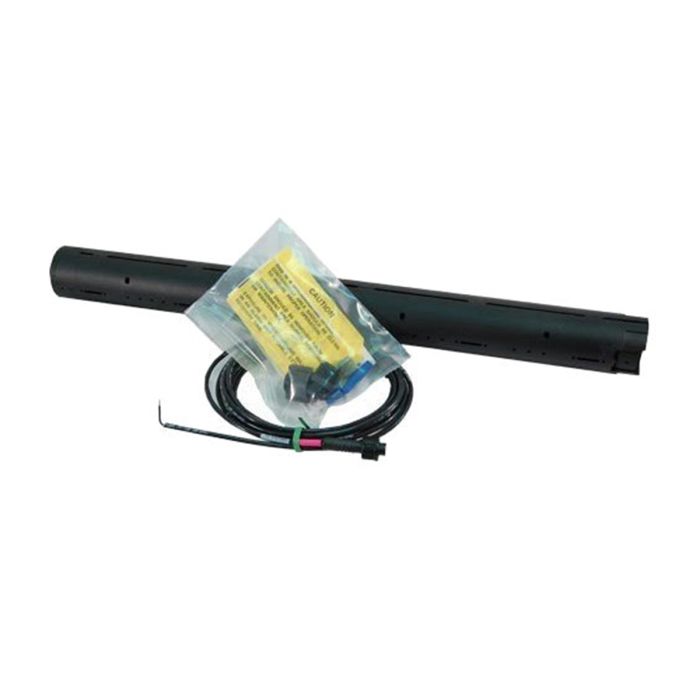

Veeder-Root DISCRIMINATING FLOAT CONT SUMP (794380-352)
Standard Ground: This item usually ships within 1 business day via standard ground.
This sensor can quickly and accurately detect the presence of hydrocarbons or fluids and differentiate between the two, with Veeder-Root’s dispenser pan and containment sump sensors. Alarm conditions, Fuel, Liquid Warning, High Liquid Alarm, Sensor Out – trigger an audible alarm. A displayed and printed message also appears on the TLS-350R or TLS-350, and they are recorded in their History Alarm Report.
Features:
- Ultrasonic technology determines presence of fluid and alarms at low level and high-level “trip” points
- Conductive elastomer differentiates between hydrocarbons and other liquids and alarms when hydrocarbon is detected at any point on the sensor
- Remains accurate, reliable and reusable even after exposure to heavy concentrations of hydrocarbons
Specifications
|
Fuel Compatibility |
Gas, Diesel, Kerosene, Jet Fuel, Aviation Gas, E15, E85*, Bio-Diesel 20, Green Diesel, Waste Oil, Motor Oil |
|
Alarm Notification |
Normal: Sensor in Normal State – No liquid detected |
|
Low Liquid: Liquid detected above low activation minimum |
|
|
High Liquid: Liquid detected above high activation minimum |
|
|
Fuel Alarm: Permeable material saturated with fuel |
|
|
Sensor Out: Sensor not communicating with ATG Console |
|
|
Operating Principle |
Product Permeable, Reed Switch /Float |
|
Operating Temp |
-32 to +140°F (0 to +60°C) |
|
Cable Length |
12 Feet |
