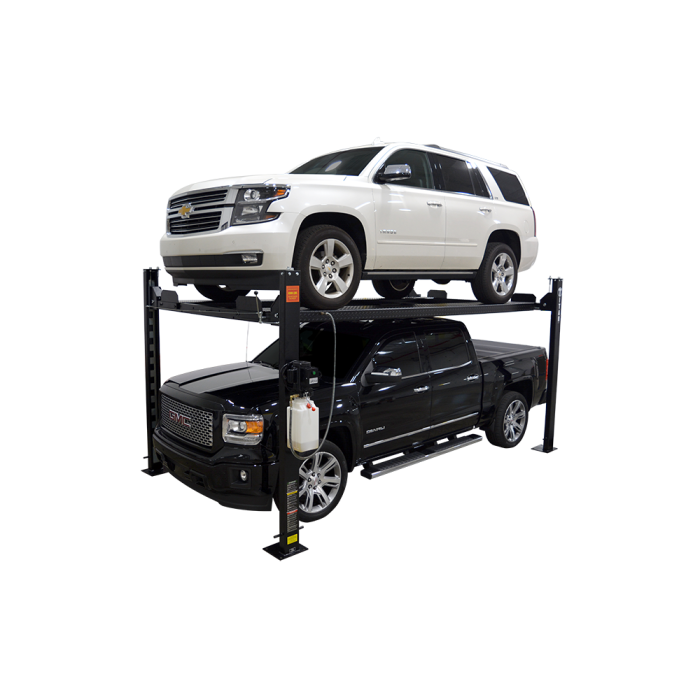

Titan SDPL-8000XLT 4-Post Lift
BACKORDER: This item is currently on backorder, but still available for purchase.
The Titan 4 post parking/storage lifts are ideal for automotive enthusiasts or for those who just need extra space in their garage. They are heavy-duty, with one-piece diamond-plated runways, 3 inch cylinder, and a durable scratch-resistant, powder-coated, midnight black finish.
They come with a 110 Volt power unit that easily adapts to most residential applications. The heavy-duty, multiple position locking mechanism and enclosed carriage arms help to ensure maximum safety.The easy operation lock handle is located by the power unit, minimizing any bending or squatting. There are many options available to personalize the lift to your needs. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble-free service.
Features
- 8,000 lb lifting capacity
- Longer and more under-car clearance than our standard model
- Aircraft quality cables rated at 14,500 lb
- 18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
- Single point safety lock release handle located near power unit
- Primary locking system with secondary slack safety lock
- Large 3" diameter cylinder
- Powder coated in midnight black finish
- Diamond plated steel approach ramps
- 1 Year Electric/Hydraulic Warranty
- 5 Year Structural Warranty
Included
- Caster Kit
- Jack tray
- 3 Drip Trays
- Steel Ramps
Optional
- Sliding Jacks Available
- Aluminum Ramp Upgrade
SPECIFICATIONS
| Center of Baseplates - Width | 99-1/4" |
|---|---|
| Outside of Baseplates - Width | 109-1/2" |
| Outside of Columns - Width | 106-3/4" |
| Width Between Columns | 100-3/8" |
| Overall Width w/Motor | 120-3/4" |
| Drive-Thru | 86-1/2" |
| Between Runways | 43-1/4" |
| Out to Out - Runways | 80-3/4" |
| Length of Runway | 180-1/2" |
| Width of Runway | 18-5/8" |
| Total Length of Ramp | 37" |
| Baseplate Dimensions | 10-1/4" x 12" |
| Column Dimensions | 3-1/4" x 6" |
| Center of Baseplates - Length | 178-1/2" |
| Outside of Baseplates - Length | 190-1/2" |
| Outside of Columns - Length | 183-1/2" |
| Inside of Columns - Length | 171" |
| Overall Length w/Ramps | 226-1/2" |
| Lifting Height | 4-3/4" - 82-1/4" |
| Overall Height | 94-1/8" |
| Lifting Capacity | 8,000 lb |
| Net Weight | 1,753 lb |
| Power Unit | 110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP |
Shipping Info
| Shipping Length | 184" |
|---|---|
| Shipping Width | 22" |
| Shipping Height | 40" |
| Shipping Weight | 1,800 lb |
| Shipping Length | 184 |
|---|---|
| Shipping Width | 22 |
| Shipping Height | 40 |
