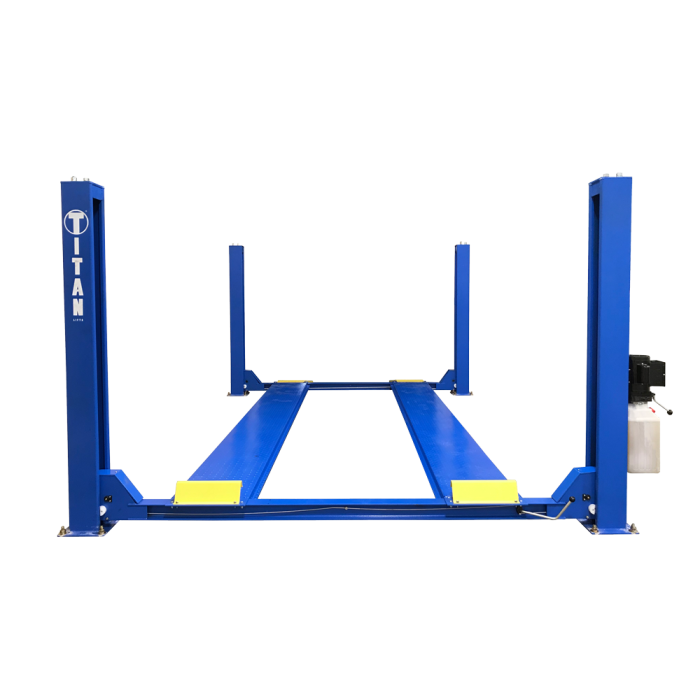

Titan 12,000 lb Heavy Duty 4-Post Lift
Special Price
$4,799.00
Regular Price
$6,700.00
SKU
TTN*HD4P-12000
Freight: This item usually ships within 3 business days via freight service.
The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial-grade, cable-driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.
- 1 Year Electric/Hydraulic Warranty
- 5 Year Structural Warranty
| Shipping Length | 196 |
|---|---|
| Shipping Width | 25 |
| Shipping Height | 43 |
| Lifting Capacity | 12,000 lb |
| Power Unit | 220V |
| Amp Draw | 15 - 26 amp |
| Length | 195.25" |
| Width | 137" |
| Height | 88" |
| Width Between Columns | 118.5" |
| Drive Thru Clearance | 104.5" |
| Under Runway Clearance | 63" |
| Width Between Runways | 48" |
| Runway Width | 19.25” |
| Runway Length | 191.25” |
| Lifting Height | 67" |
| Shipping Weight | 2,900 lb |
| Concrete Spec Minimum | 6" @3000PSI |
