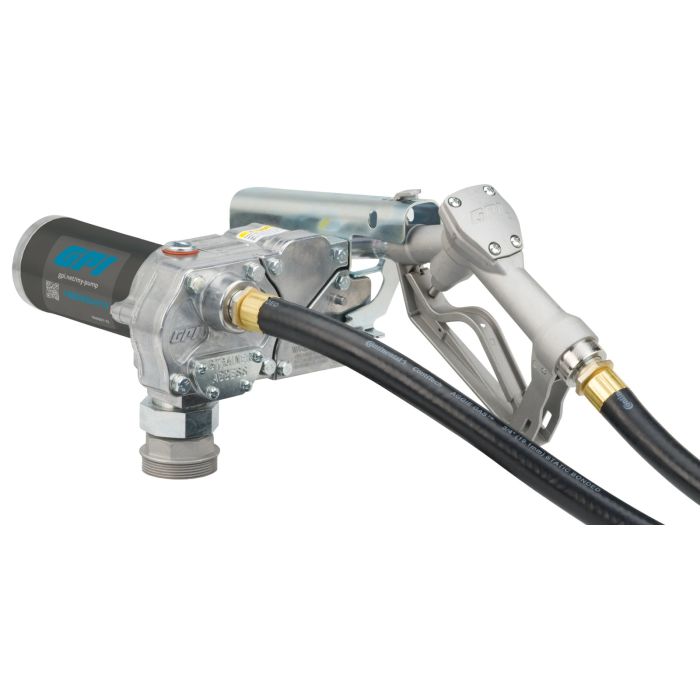

GPI M-1115S-MU 115V AC Manual Pump - 12 GPM

As the pump of choice for stationary locations in fleet, agriculture or industrial applications, the 1115S series is ideal for dispensing gasoline, diesel fuel, and kerosene. Delivering flow rates up to 12 GPM (45 L/min), the GPI M-1115S-MU features a self-priming rotary gear design, a 115-volt (ac) motor, and a lightweight cast aluminum body that resists corrosion. It comes with a manual unleaded nozzle, a telescoping suction pipe to fit tank depths between 15″ and 40″, convenient spin collar for easy installation, and lockable nozzle holder to deter theft

Features

• Material: Heavy Duty Cast Aluminum
• Designed for stationary locations in fleet, agriculture or industrial applications
• Circuit breaker motor protection extends motor life
• Convenient spin collar for easy installation
• For use with gasoline, diesel fuel, ethanol blends, and kerosene
• Lightweight aluminum body provides corrosion resistance and reduces tank stress
• Lockable nozzle holder protects your investment and deters theft.
• Convenient spin collar for easy installation and versatile pump mounting.
• UL Listed and CSA Certified & 2-year warranty.

Specifications

• Flow Rate: 12 GPM (45 L/min)
• Type: Rotary Gear
• Current Draw: 1.8 Amps
• Motor: 1400 RPM, 1/8 HP, UL listed to US and Canadian Standards
• Operating Pressure: 15 PSI, (1.03 BAR) - Standard Pressure
• Operating Temperature: -20°F to 120°F (-29°C - 52°C)
• Pump Housing: Lightweight, Corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 3/4 IN. Female NPT
• Mounting: Spin Collar. 2 IN. Male NPT
• Dispensing Hose: Buna-N electrically conductive with static wire, 12 FT (3.7 M) X (3/4 IN)
• Suction Pipe: Polypropylene, Telescoping, 15 IN - 40 IN
• Power Cord: N/A FT. (N/A M), N/A AWG
• Warranty: 2 year
• UPC: 031401110814

In The Box

• Includes the M-1115S 12 GPM pump with spin collar
• Manual unleaded nozzle
• Lockable nozzle holder
• Dispensing hose w/static wire
• Telescoping suction pipe
• Tank adapter
• Owners manual.
