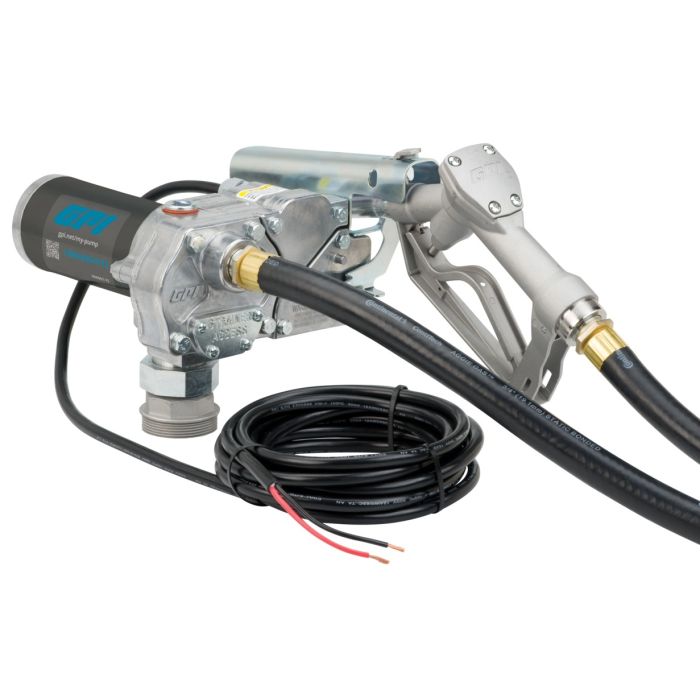

GPI M-150S-MU 12 Volt DC 15 GPM Aluminum Gear Pump

Special Price $449.99 Regular Price $600.00
SKU
GPI*110000-99

There may be extended lead times on this product.

Drop Ship: This item is shipped from the manufacturer via standard ground.

As the best-selling retail fuel transfer pump, the M-150S provides longer run times and award-winning performance year-over-year. The GPI M-150S series is the pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 15 GPM (57 L/min). The M150S-MU features a self-priming rotary gear design, a 12-volt (dc) motor, and a lightweight cast aluminum body that resists corrosion. It comes with a manual unleaded nozzle, a telescoping suction pipe to fit tank depths between 15″ and 40″, convenient spin collar for easy installation, a lockable nozzle holder to deter theft, a fuel dispensing hose, and a factory-installed, 18-ft. (5.5 m) power cord.

Features

  • Designed for permanent mounting on vented storage tanks.
  • Circuit breaker motor protection extends motor life.
  • More operating hours means longer pump life and greater value.
  • Light-weight aluminum body provides corrosion resistance and reduces tank stress.
  • Lockable nozzle holder protects your investment and deters theft.
  • Lockable nozzle holder protects your investment and deters theft.
  • Designed for permanent mounting on vented storage tanks.
  • UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

  • Flow Rate: 15 GPM (57 L/Min)
  • Type: Rotary Gear
  • Current Draw: 18 Amps
  • Motor: 1900 RPM, 1/5 HP, UL listed to US and Canadian standards
  • Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
  • Operating Temperature: -20°F to 125°F (-29°C to 52°C)
  • Housing: Lightweight, corrosion-resistant, cast aluminum body
  • Inlet: 1 IN. Female NPT
  • Outlet: 3/4 IN. Female NPT
  • Mounting: Spin Collar, 2 IN. Male NPT
  • Dispensing Hose: Buna-N electrically conductive, 12 FT. (3.7 M) X 3/4 IN.
  • Suction Pipe: Polypropylene, Telescoping, 15 to 40 IN.
  • Power Cord: 18 FT. (5.5 M), 12/2 AWG
  • 2 year warranty
  • UPC: 031401150605

In The Box

  • Includes the M-150S 15 GPM pump with spin collar
  • Manual unleaded nozzle
  • Lockable nozzle holder
  • Dispensing hose
  • Factory-installed power cord
  • Telescoping suction pipe
  • Tank adapter
  • Fuse assembly
  • Owners manual
More Information
Shipping Length 12
Shipping Width 12
Shipping Height 9
Flow Rate 15 GPM
Meter No
Inlet 1" NPT
Outlet 3/4"
Length 12'
Diameter 1"
Material Aluminum
Power Supply 12 Volt DC
