GPI M-150S-EM 12 Volt DC Aluminum Gear Pump

Special Price $399.99 Regular Price $533.00
SKU
GPI*110000-107

There may be extended lead times on this product.

Drop Ship: This item is shipped from the manufacturer via standard ground.

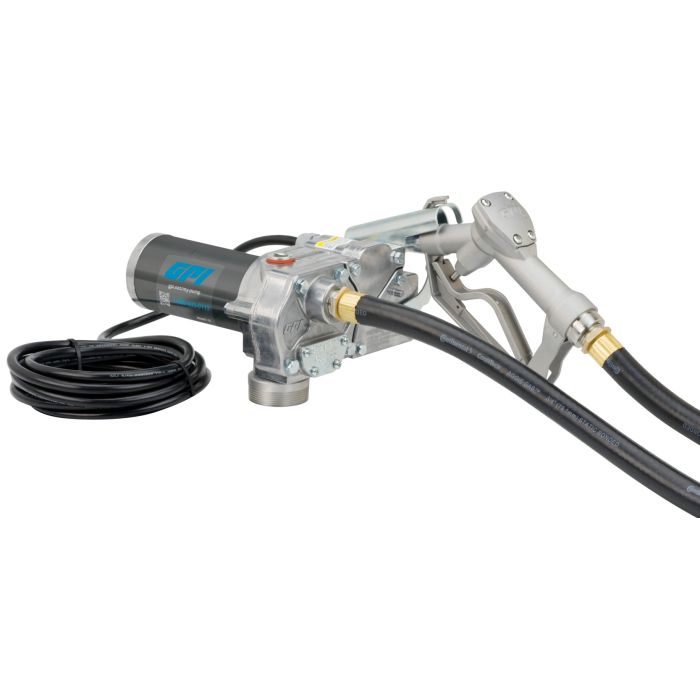

As the best-selling retail fuel transfer pump, the M-150S provides longer run times and award-winning performance year-over-year. The GPI M-150S series is the pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 15 GPM (57 L/min). The M150S-EM features a self-priming rotary gear design, a 12-volt (dc) motor, and a lightweight cast aluminum body that resists corrosion. Designed to be mounted directly to a fuel tank, it comes with a manual unleaded nozzle, a telescoping suction pipe to fit tank depths between 15″ and 40″, a lockable nozzle holder to deter theft, a fuel dispensing hose, and a factory-installed, 18-ft. (5.5 m) power cord.

Features

  • Independent lab tested, the GPI M-150S received a Gold Medal Performance award for delivering three times more operating hours than our leading competitor's comparable pump.
  • More operating hours means longer pump life and greater value.
  • Circuit breaker motor protection extends motor life.
  • Aluminum body provides corrosion and tarnish resistance.
  • Aluminum body provides corrosion and tarnish resistance.
  • Designed for permanent mounting on vented storage tanks.
  • UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

  • Performance: 15 GPM (57 L/min)
  • Type: Rotary Gear
  • Current Draw: 18 Amps
  • Motor: 1900 RPM, 1/5 HP, UL listed to US and Canadian Standards
  • Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
  • Operating Temperature: -20°F to 125°F (-29°C to 52°C)
  • Housing: Lightweight, corrosion-resistant, cast aluminum body
  • Inlet: 1 IN. Female NPT
  • Outlet: 3/4 IN. Female NPT
  • Mounting: Direct Mount, 2 IN. Male NPT
  • Dispensing Hose: Buna-N electrically conductive, 10 FT. (3.05 M) X 3/4 IN.
  • Suction Pipe: Polypropylene, telescoping, 15 IN. to 40 IN.
  • Power Cord: 18 FT, 12/2 AWG
  • 2 year warranty
  • UPC: 031401100945

In The Box

  • Includes the M-150S 15 GPM pump
  • Manual unleaded nozzle
  • Nozzle holder
  • Dispensing hose w/static wire
  • Factory-installed power cord
  • Telescoping suction pipe
  • Tank adapter
  • Fuse assembly
  • Owner's manual
More Information
Shipping Length 20
Shipping Width 16
Shipping Height 10
Flow Rate 15 GPM
Meter No
Inlet 1" NPT
Outlet 3/4"
Length 10'
Diameter 3/4"
Material Aluminum
Power Supply 12 Volt DC
