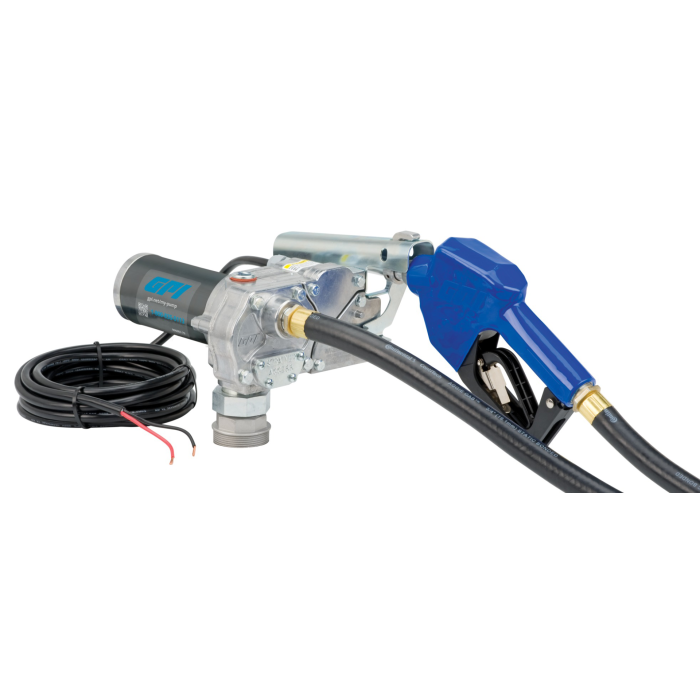

GPI M-150S-AU 12V 15 GPM Fuel Transfer Pump

Special Price $489.99 Regular Price $653.00
SKU
GPI*110000-100

There may be extended lead times on this product.

Drop Ship: This item is shipped from the manufacturer via standard ground.

This GPI M-150S-AU features a rotary gear design and is made from durable and light weight cast aluminum. The 12-VDC motor delivers flow rates up to 15 GPM. The M-150S is the best-selling fuel transfer pump in retail, providing longer run times and award-winning performance year over year. The M-150S series is the pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel and kerosene. The M-150S-AU comes with an automatic unleaded nozzle, fuel hose, power cord, adjustable suction pipe, convenient spin collar and lockable nozzle holder.

Features

  • Convenient spin collar for easy installation and versatile pump mounting
  • Designed for permanent mounting on vented storage tanks
  • Independent lab tested
  • For use with gasoline, diesel fuel, ethanol blends, and kerosene
  • Light-weight aluminum body provides corrosion resistance and reduces tank stress.
  • Lockable nozzle holder protects your investment and deters theft.
  • Designed for permanent mounting on vented storage tanks.
  • UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

  • Flow Rate: 15 GPM (57 L/min)
  • Type: Rotary Gear
  • Current Draw: 18 Amps
  • Motor: 1900 RPM, 1/5 HP, UL listed to US and Canadian standards
  • Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
  • Operating Temperature: -20°F to 125°F (-29°C to 52°C)
  • Pump Housing: Lightweight, corrosion-resistant, cast aluminum body
  • Inlet: 1 IN. Female NPT
  • Outlet: 3/4 IN. Female NPT
  • Mounting: Spin Collar, 2 IN. Male NPT
  • Dispensing hose: Buna-N electrically conductive, 12 FT. (3.7 M) X 3/4 IN.
  • Suction Pipe: Polypropylene, telescoping, 15 to 40 IN.
  • Power Cord: 18 FT. (5.5M), 12/2 AWG
  • 2 year warranty
  • UPC: 031401150612
More Information
Shipping Length 12
Shipping Width 10
Shipping Height 10
Flow Rate 15 GPM
Meter No
Inlet 1" NPT
Outlet 3/4"
Length 12'
Diameter 1"
Material Aluminum
Power Supply 12 Volt DC
