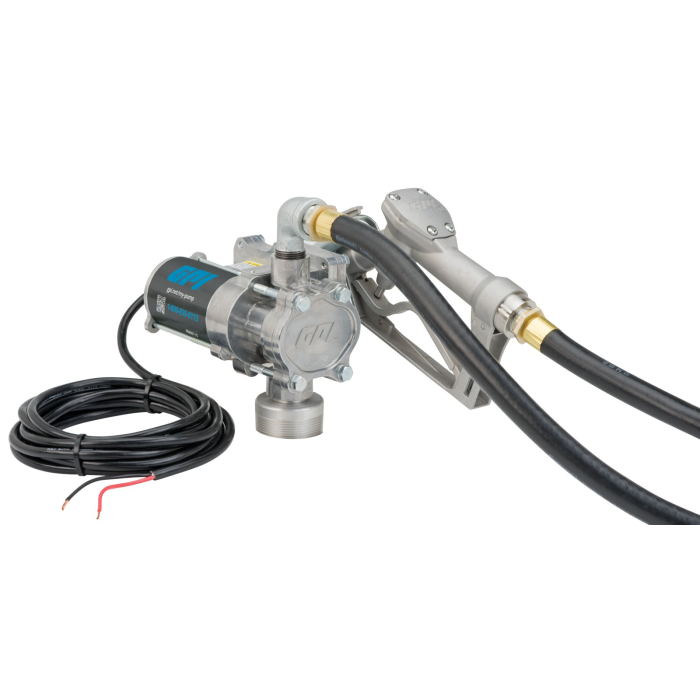

GPI 137100-01 EZ-8 12V 8GPM Fuel Transfer Pump W/ Manual Shut-Off Unleaded Nozzle

GPI EZ-8 Fuel Transfer Pump features a rotary gear design and is made from durable, lightweight corrosion-resistant diecast aluminum. The 12-VDC motor delivers gas station equivalent flow rates (up to 8 GPM) for gasoline, diesel fuel, ethanol blends, and kerosene. The EZ-8 is ideal for on the go fueling for agricultural and automotive applications and is the pump of choice for refueling recreational vehicles. The EZ-8 comes with a manual unleaded nozzle, fuel hose, power cord and adjustable suction pipe. Motor U.L. Listed to U.S. and Canadian Standards. 2 year warranty

Features

• Gas station equivalent flowrate (up to 8 GPM). Self-priming low maintenance design
• Extremely lightweight design for use on small tanks and barrels
• Easy installation and direct tank mounting
• Aluminum body provides corrosion resistance and reduces tank stress
• For use with gasoline, diesel fuel, ethanol blends, and kerosene
• Thermal overload protection extends pump life
• Aluminum body provides corrosion resistance and reduces tank stress
• Motor U.L. listed to U.S. and Canadian standards and 2-year warranty

Specifications

• Flow Rate: 8 GPM (30 L/min)
• Type: Rotary gear
• Current Draw: 11 Amps
• Motor: 2100 RPM, 1/10 HP, UL listed to US and Canadian standards
• Operating Pressure: 15 PSI (103 BAR) - Normal Pressure
• -22°F to 131°F (-30°C to 55°C)
• Pump Housing: Lightweight, corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 1 IN. Female NPT
• Mounting: Direct Mount, 2 IN. Male NPT
• Hose: Buna-N electrically conductive with static wire, 10 FT. (3.05 M) X 5/8 IN.
• Suction Pipe: Polypropylene, telescoping, 15 to 40 IN. (38.1 to 101.6 CM)
• Power Cord: 15 FT., 14/2 AWG
• 2 year warranty
• UPC: 031401137101

In the Box

• Includes the EZ-8 8 GPM pump
• Manual unleaded nozzle
• Dispensing hose w/static wire
• Factory-installed power cord
• Telescoping suction pipe
• Street elbow
• Tank adapter
• Fuse assembly
• Owners manual
