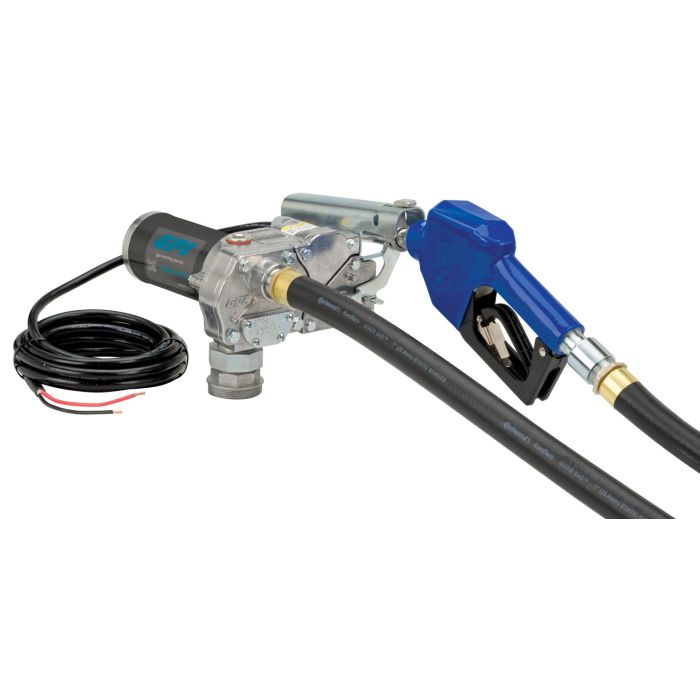

GPI 110300-2 (M-180S-AU) 12V 18GPM Auto Shut-Off Unleaded Nozzle Fuel Transfer Pump

As a GPI best-seller, the M-180S provides longer run times and reliable performance year-over-year. The GPI M-180S series is the pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 18 GPM (68 L/min). The M180S-AU features a self-priming rotary gear design, a 12-volt (dc) motor, and a lightweight cast aluminum body that resists corrosion. It is UL Listed and comes with a automatic unleaded nozzle for ease of use, a telescoping suction pipe to fit tank depths between 15″ and 40″, convenient spin collar for easy installation, a lockable nozzle holder to deter theft, a fuel dispensing hose, and a factory-installed, 18-ft. (5.5 m) power cord. UL Listed Motor and CSA Certified & 2 year warranty.

Features

• More operating hours means longer pump life and greater value.
• Convenient spin collar provides for easy installation and versatile pump mounting.
• Lightweight aluminum body provides corrosion resistance and reduces tank stress.
• Lockable nozzle holder protects your investment and deters theft.
• Designed for permanent mounting on vented storage tanks.
• Low profile design.
• UL Listed Motor and CSA Certified & 2 year warranty.

Specifications

• Flow Rate: 18 GPM (69 L/min)
• Type: Rotary gear
• Current Draw: 20 Amps
• Motor: 2000 RPM, 1/4 HP, UL listed to US and Canadian standards
• Operating Pressure: 15 PSI (1.03 BAR) - Standard Pressure
• Operating Temperature: -20°F to 125°F (-29°C to 52°)
• Pump Housing: Lightweight, corrosion-resistant, cast aluminum body
• Inlet: 1 IN. Female NPT
• Outlet: 1 IN. Female NPT
• Mounting: Spin Collar, 2 IN. Male NPT
• Hose: Buna-N electrically conductive, 12 FT. (3.7 M) X 1 IN.
• Suction Pipe: Polypropylene, telescoping, 15 to 40 IN.
• Power Cord: 18 FT. (5.5 M), 12/2 AWG
• 2 year warranty
• UPC: 031401103021

In the Box

• Includes the M-180S 18 GPM pump
• Automatic unleaded nozzle
• Dispensing hose w/static wire
• Factory-installed power cord
• Telescoping suction pipe
• Tank adapter
• Fuse assembly
• Owners manual
