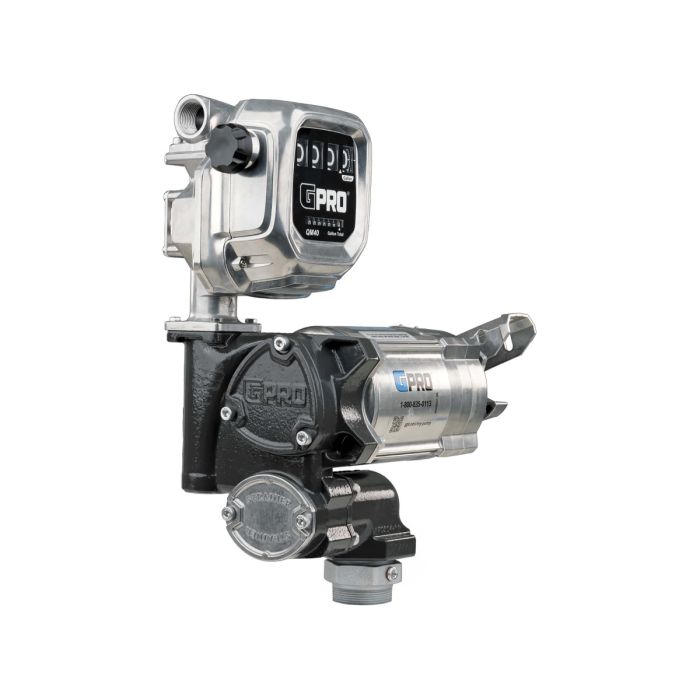

GPRO V20 PUMP, QM40-G8N METER, 115V 20GPM, 1" - PUMP ONLY (171050-01)
Special Price
$1,471.50
Regular Price
$1,635.00
SKU
GPI*171050-01
Standard Ground: This item usually ships within 1 business day via standard ground.
GPRO V20 20 GPM 115V/230V AC fuel transfer pump with QM40 (gallons) flow meter - 1-inch outlet.
20 GPM, high-output performance - it's GPRO tough stationary fueling! The GPRO V20 deliver professional grade, heavy duty performance for stationary fueling applications. It’s packed with exceptional design features that extend pump life, make maintenance a breeze, and provide the best return on your investment. V20 incorporates GPRO's Quick-fit modular design to easily add accessories to an adaptable footprint. A tank adapter allows fast, simple install and it includes an integrated port for vacuum breaker kit.
Combo includes:
GPRO QM40 mechanical fuel meter featuring extreme accuracy with oval gear technology at +/- 1/2% across flow range from 2-40 GPM (8-150 L/min). Gallon register rotates to read easily in any application; four-digit display, twist knob reset.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- 1 in. outlet for fueling large diesel equipment
- Multidirectional 90 degree outlet to adapt easily for your application
- QM40 Meter - Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM
- QM40 Meter has Magnetic Drive eliminates drive shaft leaks
- QM40 Meter Register rotates to easily read register in any application
- QM40 Meter - Optional pulser accessory is compatible with most fuel management systems
| Nozzle type | Max. Flow Rate G/L | Inlet | Operating Pressure | Outlet | Voltage, Input | Pump Housing Material |
|---|---|---|---|---|---|---|
| Not included | 20 GPM (76 L/min) | 1 in. FNPT | UP TO 25 PSI (1.72 Bar) | Modular, 1 in. FNPT | 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Powder coated Cast Iron & Aluminum |
| Voltage, Input | Technology | Amps Rated | Motor RPM | Motor HP | Operating Pressure | Operating Temperature | Pump Housing Material | Inlet | Outlet | Mounting Type | Dispensing Hose | Suction Pipe | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Sliding Vane | 5.2 amps | 1690 | 0.5 | UP TO 25 PSI (1.72 Bar) | -20° F to 125° F (-29° C to 52° C) | Powder coated Cast Iron & Aluminum | 1 in. FNPT | Modular, 1 in. FNPT | Direct Mount, 2in. MNPT | Not included | Not included | Not Included |
| Max. Flow Rate G/L | Warranty | UPC | What's in the Box |
|---|---|---|---|
| 20 GPM (76 L/min) | 5-year pump warranty | 031401011982 | V20-115PO Fuel transfer pump, Lockable nozzle holder, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owners manual, QM40-G8N Fuel meter with gallon register, Hardware, Owners manual |
| Shipping Length | 16 |
|---|---|
| Shipping Width | 19 |
| Shipping Height | 19 |
