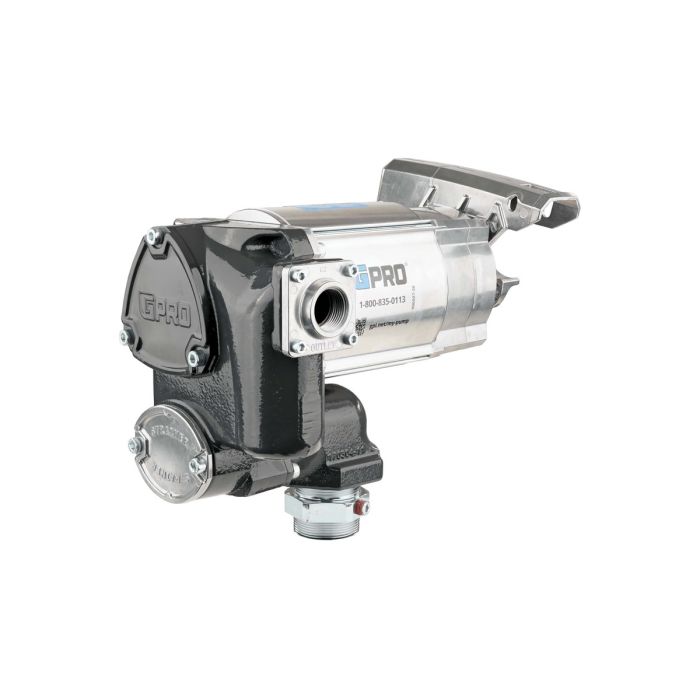

GPRO 35 GPM 120V AC Fuel Transfer Pump (172000-01)
Special Price
$1,600.20
Regular Price
$1,778.00
SKU
GPI*172000-01
Standard Ground: This item usually ships within 1 business day via standard ground.
GPRO V35 35 GPM 120V AC fuel transfer pump.
The GPRO V35 is engineered for professionals who demand fast, reliable, heavy-duty fueling. With a high-flow rate of 35 GPM, this pump handles large-volume transfers with ease. It features corrosion-resistant materials, a weatherproof sealed design, and two outlet fitting options for flexible, secure installation. Designed for field-serviceability, the V35 offers tool-free access to the fuel strainer and features modular replaceable components to minimize downtime and simplify maintenance. When uptime matters, the V35 keeps your operation moving.
Pump only models allows customers to select needed accessories or use as a backup to high-demand or seasonal operations.
- What you demand - professional grade fueling at 35GPM for heavy-duty equipment
- Delivers a lifetime corrosion-resistant fuel transfer pump that stands up to harsh environments and Mother Nature - weatherproof tested
- Withstands the daily abuse of job-site handling
- Field replaceable switch and capacitor without compromising weather resistance or agency approvals
- Easy access to fuel strainer: five minutes to clean strainer without removing the pump from the tank
- Overhaul kits and replacement parts available to extend the service life of the pump
- Vertical Nozzle Orientation, keeps tanks clean and offers easy nozzle placement after use
| Nozzle type | Max. Flow Rate G/L | Inlet | Operating Pressure | Outlet | Voltage, Input | Pump Housing Material |
|---|---|---|---|---|---|---|
| 1 in. FNPT Inlet, Automatic Shut-off, Diesel | 35 GPM (132 L/min) | 1.25 in. FNPT | UP TO 25 PSI (1.72 Bar) | Modular, 1 in. FNPT | 120V (AC) 60Hz, 240V (AC) 60Hz Dual Voltage Configurable | Powder coated Cast Iron & Aluminum |
| Voltage, Input | Technology | Amps Rated | Motor RPM | Motor HP | Operating Pressure | Operating Temperature | Pump Housing Material | Inlet | Outlet | Mounting Type | Dispensing Hose | Suction Pipe | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Sliding Vane | 8.1 amps (120V/60Hz) / 4.3 amps (240V/60Hz) *NOTE: 50Hz supply voltage will produce a pump rate of 110 L/min, suction lift of 3.9m, current draw of 4.8A, and motor performance of 1405 RPM, and .83 HP. | 1690 | 1 | Up to 23 PSI (1.6 bar) | -20° F to 125° F (-29° C to 52° C) | Powder coated Cast Iron & Aluminum | 1.25 in. FNPT | 1-inch FNPT | Direct Mount, 2in. MNPT | 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly | Not included | Not Included |
| Max. Flow Rate G/L | Warranty | UPC | What's in the Box |
|---|---|---|---|
| 20 GPM (76 L/min) | 5-year pump warranty | 31401013610 | V35-115PO 120V AC 35 GPM Fuel transfer pump, Lockable nozzle holder, Modular and straight NPT outlet fittings w/hardware, NPT Tank adapter, Thread tape, Owners manual |
| Shipping Length | 10 |
|---|---|
| Shipping Width | 9 |
| Shipping Height | 15 |
