GPRO 20 GPM 115V AC Pump: Gallon Meter, Auto Diesel Nozzle (171050-06)
Special Price
$1,701.90
Regular Price
$1,891.00
SKU
GPI*171050-06
Standard Ground: This item usually ships within 1 business day via standard ground.

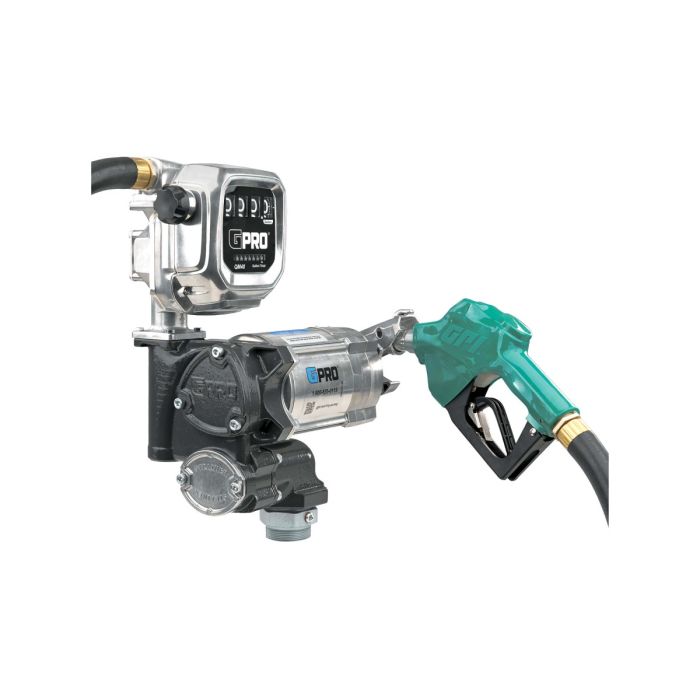

GPRO V20 20 GPM 115V/230V AC fuel transfer pump with QM40 (gallons) flow meter and automatic shut-off diesel nozzle.
20 GPM, high-output performance - it's GPRO tough stationary fueling! The GPRO V20 deliver professional grade, heavy duty performance for stationary fueling applications. It’s packed with exceptional design features that extend pump life, make maintenance a breeze, and provide the best return on your investment. V20 incorporates GPRO's Quick-fit modular design to easily add accessories to an adaptable footprint. A tank adapter allows fast, simple install and it includes an integrated port for vacuum breaker kit.
Combo includes:
GPRO QM40 mechanical fuel meter featuring extreme accuracy with oval gear technology at +/- 1/2% across flow range from 8-150 L/min (2-40 GPM). Gallon register rotates to read easily in any application; four-digit display, twist knob reset.
1-inch NPT, UL listed automatic shut-off, diesel nozzle. No Pressure, No Flow: The nozzle latch will only engage once the nozzle detects fluid pressure, improving user safety in accordance with UL standards. Easy one-finger hold-open clip allows you to set the flow rate for automatic dispensing while reducing fuel spillage.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- 1 in. outlet for fueling large diesel equipment
- Multidirectional 90 degree outlet to adapt easily for your application
- QM40 Meter - Extreme Accuracy, within +/- 1/2% across a flow range from 2 to 40 GPM
- QM40 Meter has Magnetic Drive eliminates drive shaft leaks
- QM40 Meter Register rotates to easily read register in any application
- QM40 Meter - Optional pulser accessory is compatible with most fuel management systems
| Nozzle type | Max. Flow Rate G/L | Inlet | Operating Pressure | Outlet | Voltage, Input | Pump Housing Material |
|---|---|---|---|---|---|---|
| 1 in. FNPT Inlet, Automatic Shut-off, Diesel | 20 GPM (76 L/min) | 1 in. FNPT | UP TO 25 PSI (1.72 Bar) | Modular, 1 in. FNPT | 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Powder coated Cast Iron & Aluminum |
| Voltage, Input | Technology | Amps Rated | Motor RPM | Motor HP | Operating Pressure | Operating Temperature | Pump Housing Material | Inlet | Outlet | Mounting Type | Dispensing Hose | Suction Pipe | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Sliding Vane | 5.2 amps | 1690 | 0.5 | UP TO 25 PSI (1.72 Bar) | -20° F to 125° F (-29° C to 52° C) | Powder coated Cast Iron & Aluminum | 1 in. FNPT | Modular, 1 in. FNPT | Direct Mount, 2in. MNPT | 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly | Not included | Not Included |
| Max. Flow Rate G/L | Warranty | UPC | What's in the Box |
|---|---|---|---|
| 20 GPM (76 L/min) | 5-year pump warranty | 31401012026 | V20-115AD Fuel transfer pump, Lockable nozzle holder, Automatic shut-off diesel nozzle, Dispensing hose, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owner manual, QM40-G8N Fuel meter with GALLON register, Hardware, Owners manual |
| Shipping Length | 16 |
|---|---|
| Shipping Width | 19 |
| Shipping Height | 19 |
