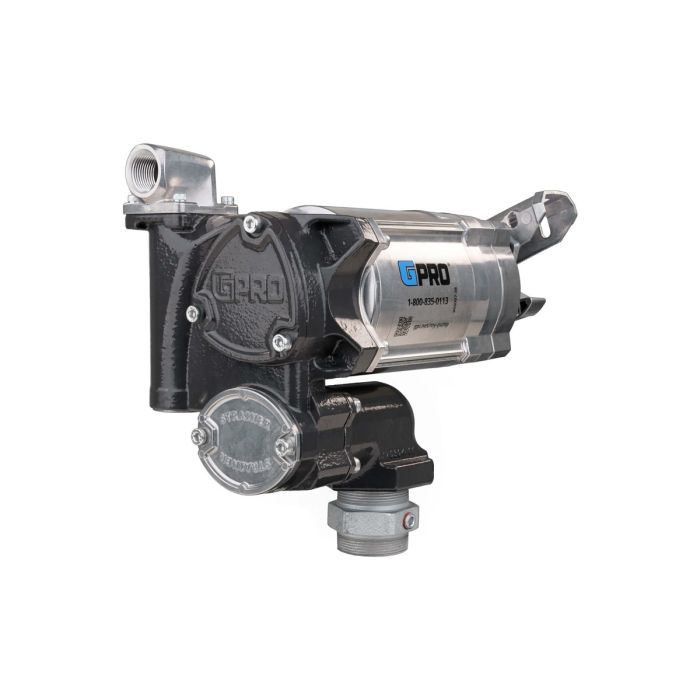

GPRO 20 GPM 115V AC Fuel Transfer Pump: 1-inch Outlet (171000-01)
Special Price
$935.10
Regular Price
$1,039.00
SKU
GPI*171000-01
Standard Ground: This item usually ships within 1 business day via standard ground.
GPRO V20 20 GPM 115V/230V AC dual voltage configurable, fuel transfer pump with 1-inch outlet.
20 GPM, high-output performance - it's GPRO tough stationary fueling! The GPRO
V20 deliver professional grade, heavy duty performance for stationary fueling
applications. It’s packed with exceptional design features that extend pump
life, make maintenance a breeze, and provide the best return on your
investment. V20 incorporates GPRO's Quick-fit modular design to easily add
accessories to an adaptable footprint. A tank adapter allows fast, simple
install and it includes an integrated port for vacuum breaker kit.
Pump only models allows customers to select needed accessories or use as a
backup to high-demand or seasonal operations.
- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- Quick-Fit 1 in. NPT 90 degree outlet for fueling large diesel equipment, multidirectional
- Lockable nozzle holder with enclosed spout guard protects from weather and debris.
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for vacuum breaker kit.
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.</strong>
| Nozzle type | Max. Flow Rate G/L | Inlet | Operating Pressure | Outlet | Voltage, Input | Pump Housing Material |
|---|---|---|---|---|---|---|
| Not included | 20 GPM (76 L/min) | 1 in. FNPT | UP TO 25 PSI (1.72 Bar) | Modular, 1 in. FNPT | 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Powder coated Cast Iron & Aluminum |
| Voltage, Input | Technology | Amps Rated | Motor RPM | Motor HP | Operating Pressure | Operating Temperature | Pump Housing Material | Inlet | Outlet | Mounting Type | Dispensing Hose | Suction Pipe | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable | Sliding Vane | 5.2 amps | 1690 | 0.5 | UP TO 25 PSI (1.72 Bar) | -20° F to 125° F (-29° C to 52° C) | Powder coated Cast Iron & Aluminum | 1 in. FNPT | Modular, 1 in. FNPT | Direct Mount, 2in. MNPT | Not included | Not included | Not Included |
| Max. Flow Rate G/L | Warranty | UPC | What's in the Box |
|---|---|---|---|
| 20 GPM (76 L/min) | 5-year pump warranty | 31401011579 | V20-115PO Fuel transfer pump w/spin collar, Lockable nozzle holder, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owners manual |
| Shipping Length | 19 |
|---|---|
| Shipping Width | 16 |
| Shipping Height | 13 |
