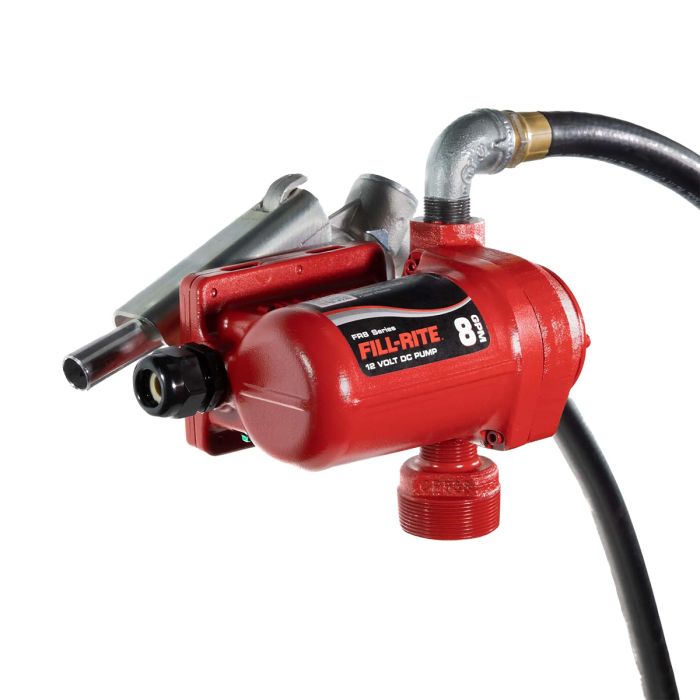

Fill-Rite 12V DC 8 GPM Fuel Transfer Pump with Nozzle
Special Price
$349.99
Regular Price
$469.00
SKU
FIL*FR8
Drop Ship: This item is shipped from the manufacturer via standard ground.
Say goodbye to the hassle and inefficiency of gas cans, gas stations, and hand-operated pumps forever. The FR8 Series is the most convenient and efficient way to fuel your small equipment!
- True 8 GPM Performance — delivers the same performance as gas stations pumps, making it ideal for filling equipment with 2–25-gallon fuel tanks
- Proven Reliability — Fill-Rite's reliable sliding vane technology maintains perfect clearances and consistent performance over the entire life of the pump
- Hassle-Free — refueling with the FR8 eliminates the hassle, spills, and wasted time caused by clunky and inefficient gas cans
- Ultra Lightweight — under 13 pounds, the FR8's compact and lightweight design reduces stress on your transfer tank
- Elite Endurance — the FR8 has a 15 minutes on, 15 minutes off duty cycle, so you can pump TWICE as much as the competition in 45 minutes
- Peace of Mind — the FR8's thermally-protected motor shuts down if it gets too hot, so you never have to worry about it overheating
- Long-Lasting Durability — heavy-duty, cast-iron construction outlasts daily wear and tear in harsh weather
- Theft Prevention — lockable power switch deters theft when leaving your pump unattended at the trailhead or on the side of the road (Master Lock® #140DLH recommended)
- Fluid Compatibility — designed for daily use with gasoline, diesel, kerosene, biodiesel blends up to B20, and ethanol blends up to E10
Performance:
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Inlet / Outlet Thread Size (in.) | 1 " / 0.75 " |
| Mounting Size / Thread / Type | 2" / Buttress / Rotary Vane |
| Duty Cycle | 15 min on / 15 min off |
| Motor Power | 1/12 |
| Power Type | DC |
| Suction Lift (ft.) | 6 ' |
| Dry Vacuum (in. Hg) | 3.5 |
| Max Discharge Pressure | 12 PSI |
| Discharge Head (ft.) | 32 ' |
| Strainer Mesh Size (micron) | 20 x 20 |
Items Included:
| Discharge Hose | ¾” X 12’ Hose with Static Ground Wire |
|---|---|
| Nozzle | ¾” Cast Aluminum Manual Nozzle |
| Ground Wire | Yes |
| Cable Length (ft.) | 15 |
| Cable Gauge | 14 |
Dimensions:
| Assembled Product Height x Width x Depth (in.) | 7.16 x 7.2 x 8.9 |
|---|---|
| Assembled Product Weight (lbs.) | 12.3 |
| Package Height x Width x Depth (in.) | 8.25 x 12.81 x 16.18 |
| Gross Weight (lbs.) | 24.500 lbs |
